Compact Articulating Loader
Low energy cost: Electricity prices are usually much lower than diesel prices, which greatly reduces energy consumption costs per hour or ton-kilometer.
Reduced fire risk: No fuel and high-temperature exhaust system, reducing fire hazards
Zero tail gas emissions: No harmful gas emissions are generated where the equipment is used, which greatly improves the air quality of the construction site environment and complies with increasingly stringent environmental regulations.
Compact Articulating Loader Product Introduction
It perfectly combines the flexibility and stability of articulated steering with the passability of a compact body, making it a star device in the fields of municipal administration, agriculture, warehousing, interior decoration, etc. If you need to complete multiple tasks efficiently and flexibly in a narrow space, it is definitely a choice worth considering.

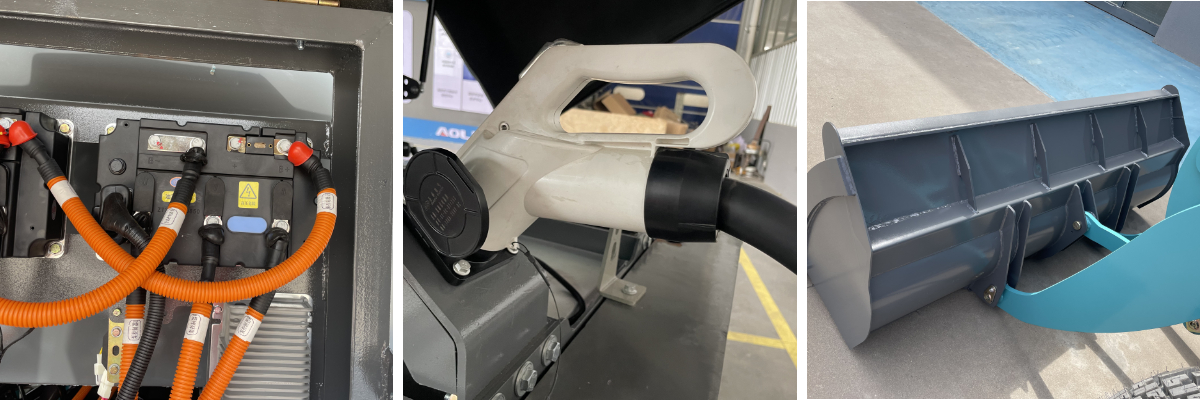

Compact Articulating Loader Product Details
1. Less charging time & longer working time, charging time is less than 8 hours, large capacity cold-resistant maintenance-free battery, ensure 6 hours working time
2. Comfortable driving, luxurious shock absorption, adjustable seat with seat belt, ergonomic control handle, luxurious digital display instrument
3. Attachments, the quick hook and bucket are standard, and a wide variety of other attachments can be used to handle almost any job that needs to be done.
4. Compact size, it is very suitable for working in complex indoor, farm, garden, warehouse, road construction.
Compact Articulating Loader Technical Parameters
| Rated load (kg) | 1500 |
| Overall weight (kg) | 4750 |
| Bucket capacity (m³） | 0.7 |
| Maximum steering radius | ±35° |
| Maximum turning radius (mm) | 4440 |
| Amplitude of the rear axle | 20° |
| Total time (s) | 9 |
| Working time (h) | 5 |
| Gearbox model | 265 |
Speed (km/h) | low speed 6 Highway 16 |
| Dumping height (mm) | 2570 |
| Lifting height (mm) | 3270 |
| Overall dimension (mm) | 5360*1970*2720 |
| Dumping distance (mm) | 945 |
| Bucket width (mm) | 1970 |
| Wheel base (mm) | 1975 |
| Wheel tread (mm) | 1510 |
| Battery quantity | 20 |
| Battery capacity (kw) | 45 |
| Rated voltage (v) | 120 |
| Motor quantity | 1 |
| Steering cylinder quantity (pc) | 2 |
Compact Articulating Loader Application Scenario
Landscaping: Electric loaders are ideal for landscaping projects, providing precision and minimal disruption, especially in parks and gardens
Construction: Electric wheel loaders can be used for tasks such as demolition, leveling land, preparing sites and transporting materials. They are particularly useful in urban areas where there are restrictions on noise and emissions.
Agriculture: Farmers use electric loaders to transport grain, hay bales, and other farm materials. They can also be used for land clearing, tilling, and planting.
