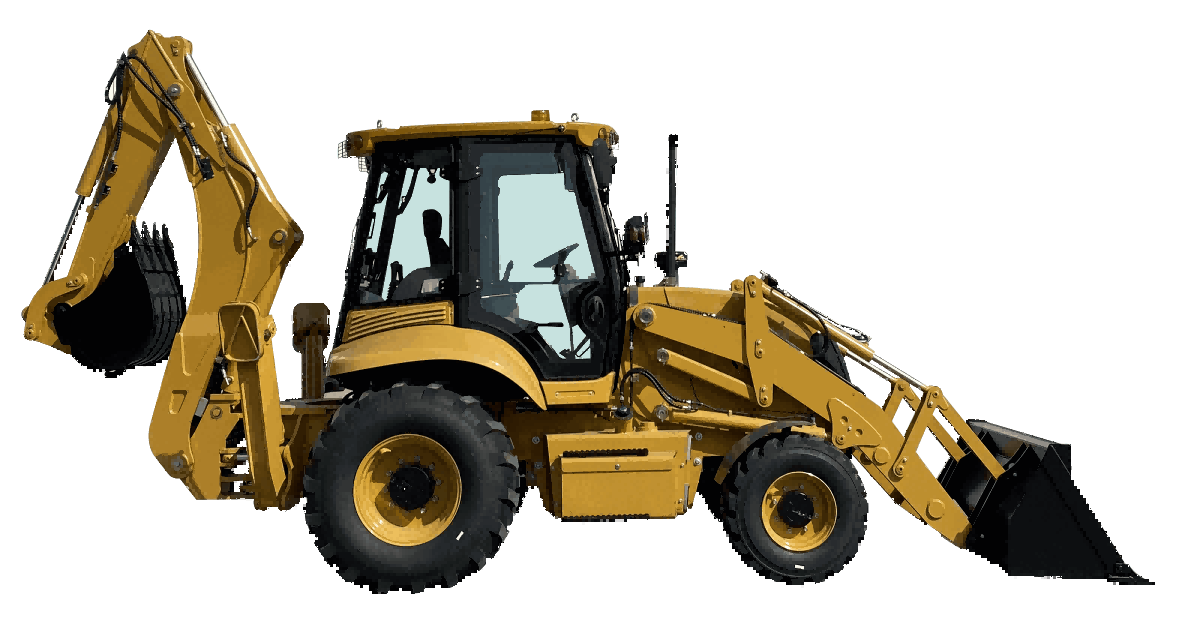

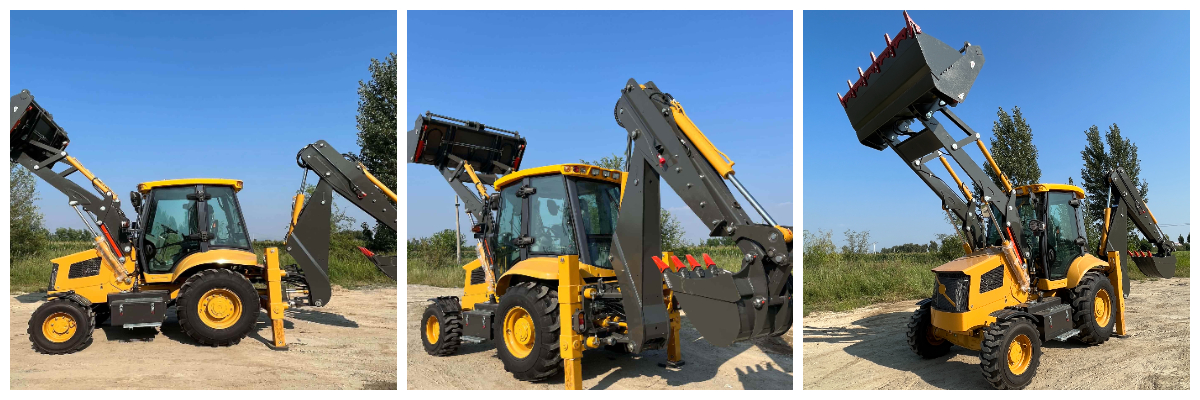

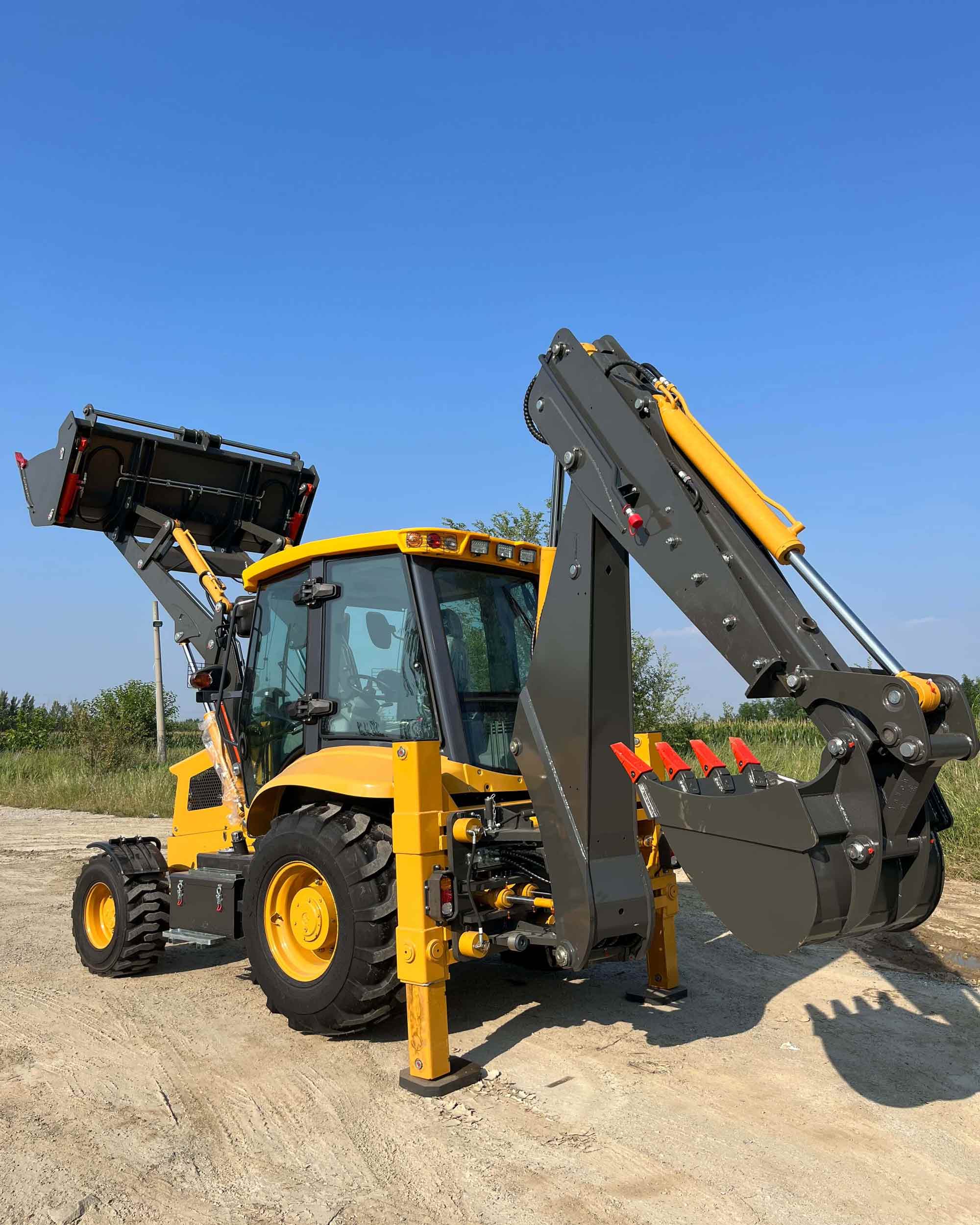

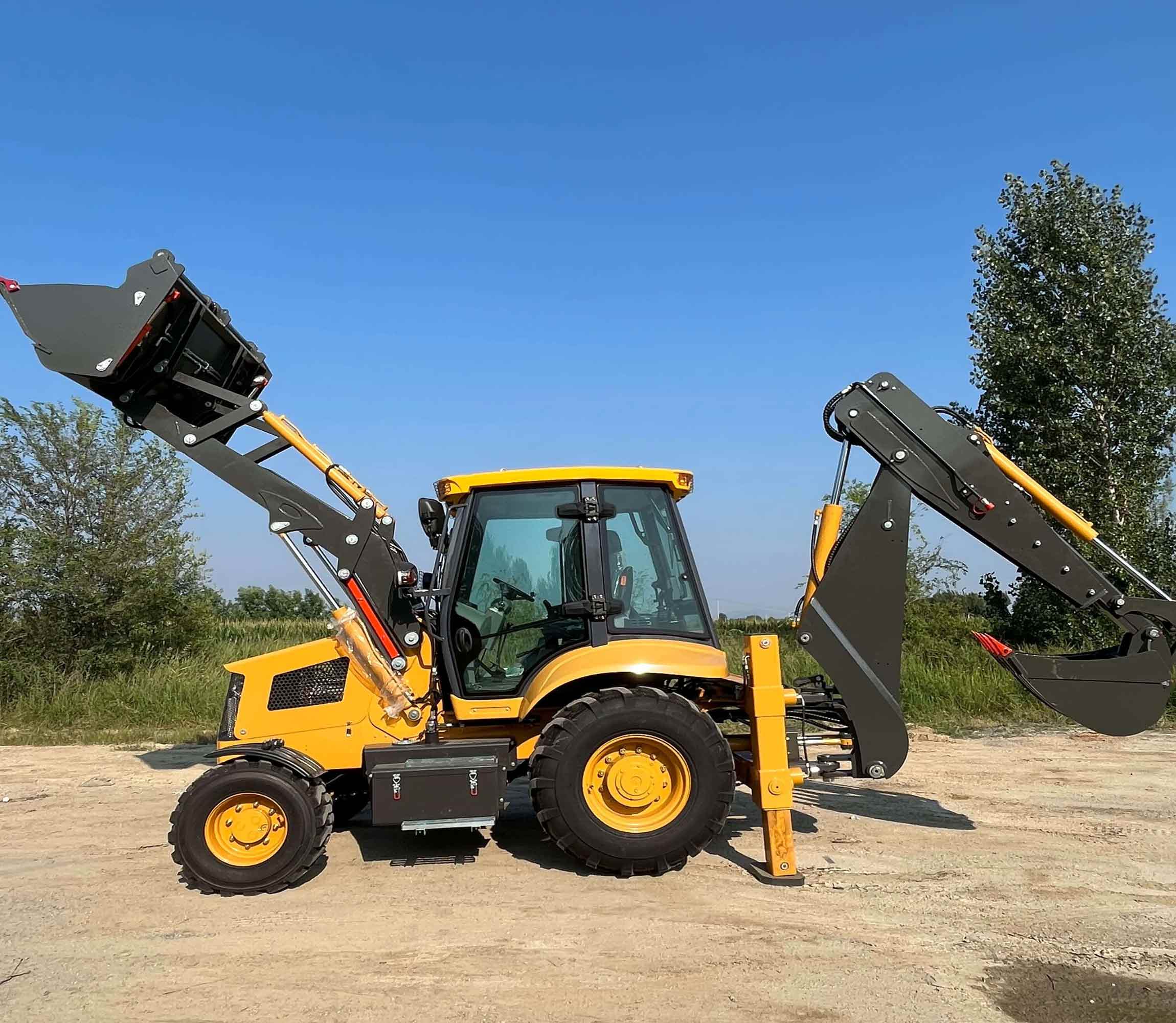

2.5 Ton Backhoe Loader
A backhoe loader, also called a loader backhoe, loader excavator, tractor excavator,digger or colloquially shortened to backhoe within the industry, is a heavy equipment vehicle that consists of a tractor-like unit fitted with a loader-style shovel/bucket on the front and a backhoe on the back. Due to its (relatively) small size and versatility, backhoe loaders are very common in urban engineering and small construction projects (such as building a small house, fixing urban roads, etc.) as well as developing countries.
Product Description
Backhoe loaders are a type of small multifunctional construction machinery, which is generally used in small projects after large projects are completed. It can be equipped with a variety of working devices and auxiliary tools for excavation, shovel loading, road crushing, ground leveling, trench excavation, ventilation pipes,s and other operations.
Backhoe loaders are mainly used for urban and rural road construction and maintenance, cable laying, electric power and airport engineering, municipal construction, irrigation water conservancy construction, rural housing construction, mountain excavation, and various construction projects built by various small construction teams.Wogong Loader-digger can provide the required power and precise loading and unloading in areas where large equipment is not suitable. Due to its relatively small frame size and versatility, our Loader Digger can increase construction productivity and reduce machine operating costs. Match with high-quality engine, low, low blow off of noise, driving force forceful, twist from when the reserve is big.
Technical Parameters
Overall dimensions（mm) | 6096*2335*3555 |
wheelbase（mm） | 2200 |
Track width（mm) | 1850/2000 |
Ground clearance（mm) | 300 |
minimum turning radius（mm) | 6580 |
system pressure（Mpa) | 28 |
Overall weight（kg) | 7500 |
maximum speed（Km/h) | 22-35 |
gradeability（°） | 35 |
Maximum Telescopic Excavation Depth （mm) | 4000 |
Excavation unloading height（mm) | 4500 |
Maximum digging radius（mm) | 5800 |
Features

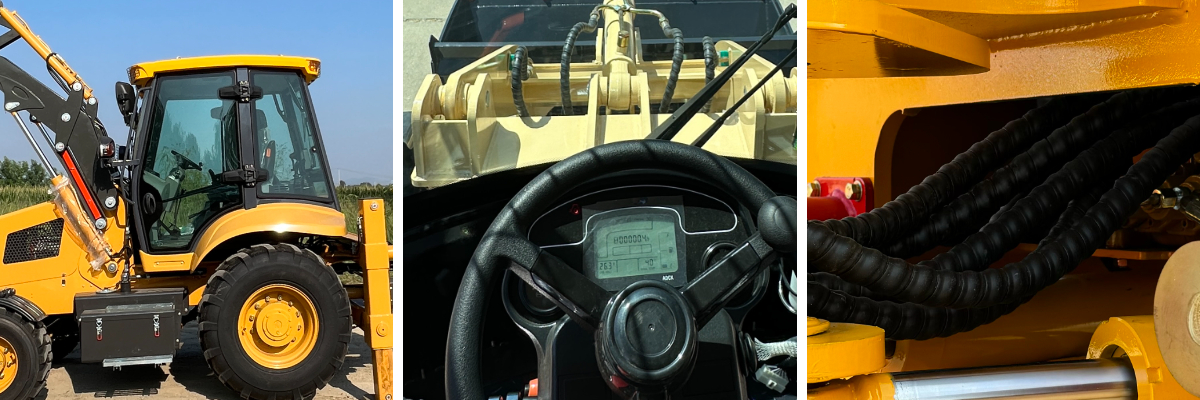

1. Humanized high-configuration cab improves the comfort of the operating space, with wide vision and high safety;
2. High-end hydraulic system to ensure the stability of operation and efficient operation;
3. A variety of auxiliary tools can be used for a variety of operations, and the selection of telescopic arms can improve the working range.
4. The whole frame and the whole machine stability are good and more suitable for digging operations;
5. The excavating device is the middle type, lightweight, high strength, and has good structure stability; The working device of the loading end adopts an eight-link mechanism.
6. Central articulated chassis provides a small turning radius and flexible operation.
7. Hydraulic transmission, four-wheel drive, stable performance, and high reliability.
8. The frame is made of manganese steel with a long service life.
