Articulating Front End Loader
More comfortable working environment:closed cabin,air conditioning can be installed.
Environmental awareness, is constantly growing and electromobility is not anymore a futuristic vision: it is reality.
ECO & Efficiency, the target was to guarantee the same performance in an electrically operated machine as our diesel mini loaders.

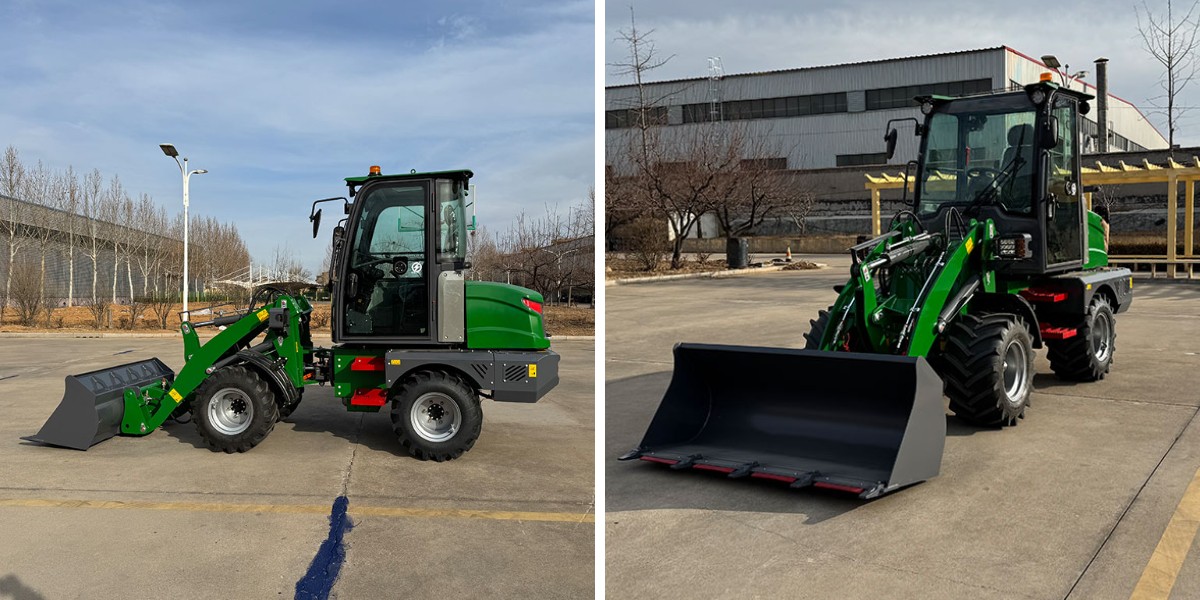

Description Of Compact Articulated Wheel Loader
Electric wheel loaders are one of the pioneers of electrification of construction machinery. With their significant advantages in environmental protection, low noise and low operating costs, they have shown strong competitiveness in specific application scenarios. Although they still face challenges such as high purchase cost, endurance and charging, with the rapid progress of battery technology, the improvement of charging/battery replacement infrastructure, the cost reduction brought about by large-scale production, and the continuous promotion of global environmental protection policies, the market share of electric wheel loaders is growing rapidly. In the future, they will become one of the mainstream choices in the market, profoundly changing the landscape of the construction machinery industry.

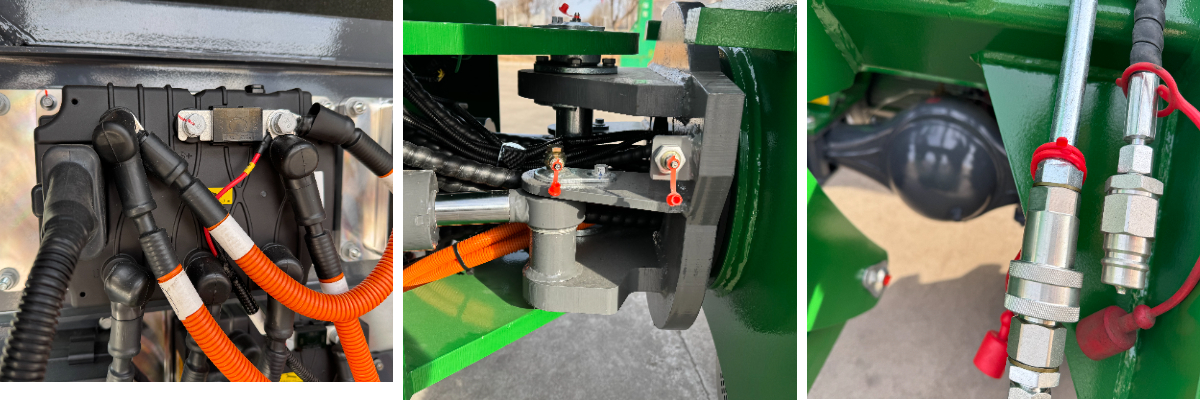

Compact Articulated Wheel Loader Product Details
Good constructure Matieral& Powder Coating：Strong and stable structural components,thanks to the profile of sufficient thickness; complex painting process makes the machine surface more brighter and corrosion-resistant;
Reasonable pipeline layout: The optimized pipeline layout is clear and reasonable, which significantly improves the convenience of maintenance
Product Parameters
| Rated load (kg) | 1200 |
| Overall weight (kg) | 3100 |
| Bucket capacity (m³） | 0.45 |
| Maximum steering radius | 40 |
| Maximum turning radius (mm) | 3500 |
| Amplitude of the rear axle | 19 |
| Total time (s) | 9.9 |
| Working time (h) | 5 |
Speed (km/h) | low speed 10 high speed 20 |
| Dumping height (mm) | 2410 |
| Lifting height (mm) | 3580 |
| Overall dimension (mm) | 4885*1730*2500 |
| Dumping distance (mm) | 860 |
| Bucket width (mm) | 1730 |
| Wheel base (mm) | 1835 |
| Wheel tread (mm) | 1185 |
| Ground clearance (mm) | 210 |
| Battery model | TEV12-256 |
| Battery quantity | 8 |
| Battery capacity (kw) | 25.4 |
| Rated voltage (v) | 96 |
| Electrical system voltage (v) | 12 |
| Electric system | alternating current |
| Voltage (v) | 96 |
| Power (kw) | 7.5 |
| Type of steering hydraulic system | Full hydraulic steering |
| System pressure (mpa) | 14 |
| Travel system voltage (V) | 96 |
| Travel system power (KW) | 15 |
Articulating Front End Loader Application Industry
Landscaping: Electric loaders are ideal for landscaping projects, providing precision and minimal disruption, especially in parks and gardens
Construction: Electric wheel loaders can be used for tasks such as demolition, leveling land, preparing sites and transporting materials. They are particularly useful in urban areas where there are restrictions on noise and emissions.
Agriculture: Farmers use electric loaders to transport grain, hay bales, and other farm materials. They can also be used for land clearing, tilling, and planting.
