7 Ton Propane Gas Forklift
Powerful: Provides strong power and torque comparable to diesel forklifts, suitable for high-intensity, heavy-load operations.
Long run time/quick refueling: Replacing gas cylinders usually takes only a few minutes, which is much faster than charging an electric forklift, suitable for multi-shift continuous operation.
Good low-temperature performance: Starts and runs better than electric forklifts in cold environments.
Indoor and outdoor versatility: Can operate well outdoors and can also be used indoors with certain ventilation conditions
Description of 7 tonne propane gas forklift
Gas forklifts combine the power of internal combustion engines with the characteristics of clean energy. The LPG/CNG dual-fuel system provides continuous and surging power, and the fuel replenishment speed is 15 times faster than charging. The unique lean combustion technology reduces indoor exhaust emissions by 85% compared to diesel, and can operate safely in ventilation-compliant sites, becoming an efficiency engine for high-intensity logistics centers.
Product Details

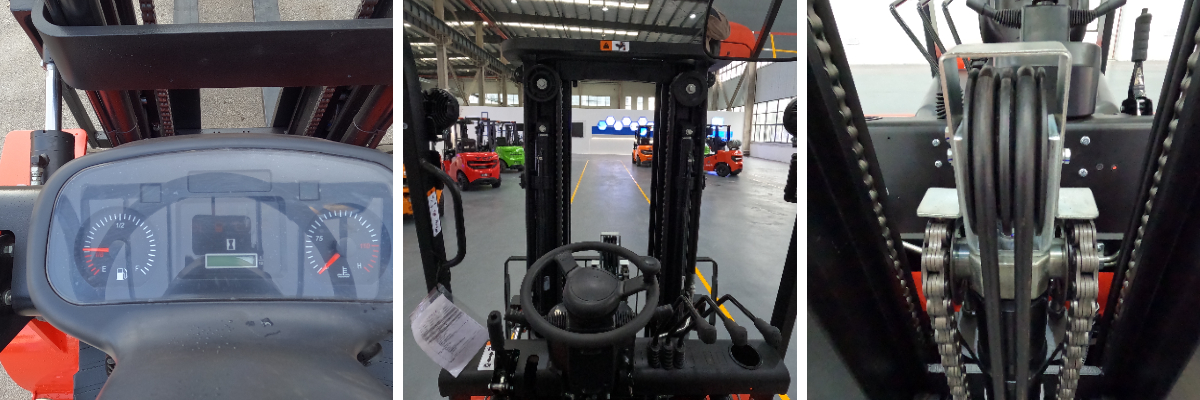

LCD display: enables the operator to understand the vehicle status more intuitively and facilitates maintenance
Thickened chain: The thickened high-quality chain has excellent tensile strength and can easily cope with heavy-load lifting needs. Its solid structure significantly improves the safety factor and effectively reduces the risk of breakage, which is a reliable guarantee to prevent lifting accidents.
Function control area: The equipment function control area adopts a highly integrated design, and key operating components are centrally arranged to facilitate the driver to quickly reach and operate.
Technical Parameters
| Rated lifting capacity（kg） | 7000 |
| Load center distance（mm） | 600 |
| Maximum lifting height（mm） | 3000 |
| Free lifting height（mm） | 150 |
| Front mast inclination angle（°） | 6° |
| Rear mast inclination angle（°） | 12° |
| Maximum lifting speed when empty（mm/s） | 480 |
| Maximum lifting speed when fully loaded（mm/s） | 430 |
| Maximum travel speed when empty（km/h） | 28 |
| Maximum travel speed when fully loaded（km/h） | 25.5 |
| Maximum climbing grade (empty/full load %) | 20/20 |
Minimum turning radius （mm) | 3560 |
Weight (kg) | 9800 |
Wheelbase(mm) | 2250 |
| Front overhang(mm) | 616 |
| Rear overhang(mm) | 869 |
Length without forks(mm) | 3400 |
| Front wheel outer width(mm) | 2045 |
| Unlifting mast height(mm) | 2430 |
| Overhead guard height(mm) | 2550 |
