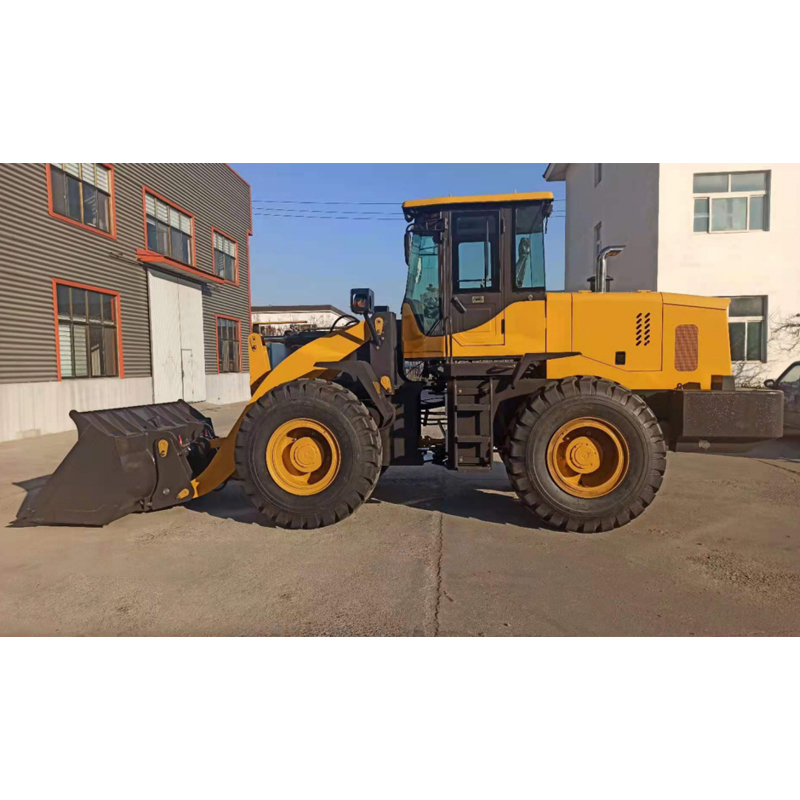

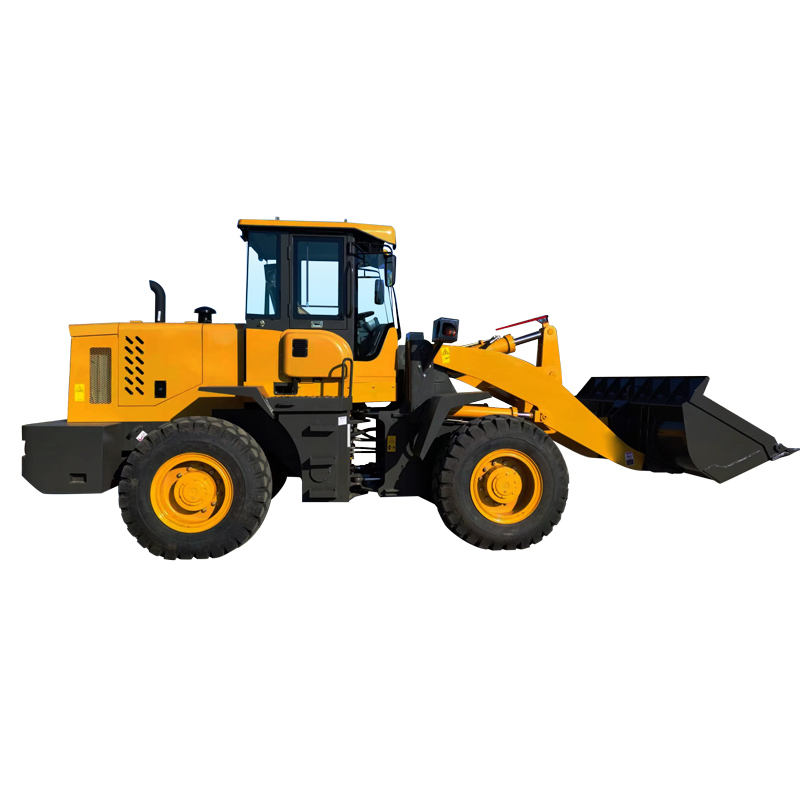

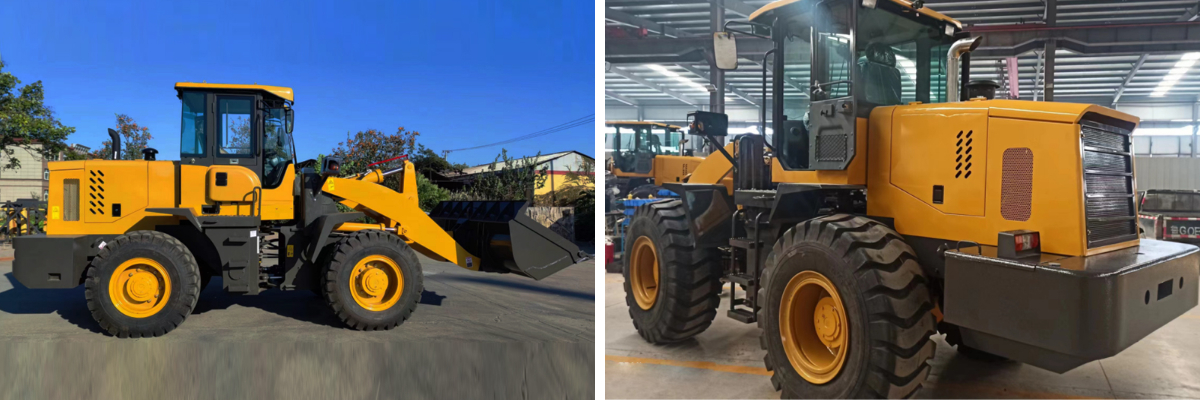

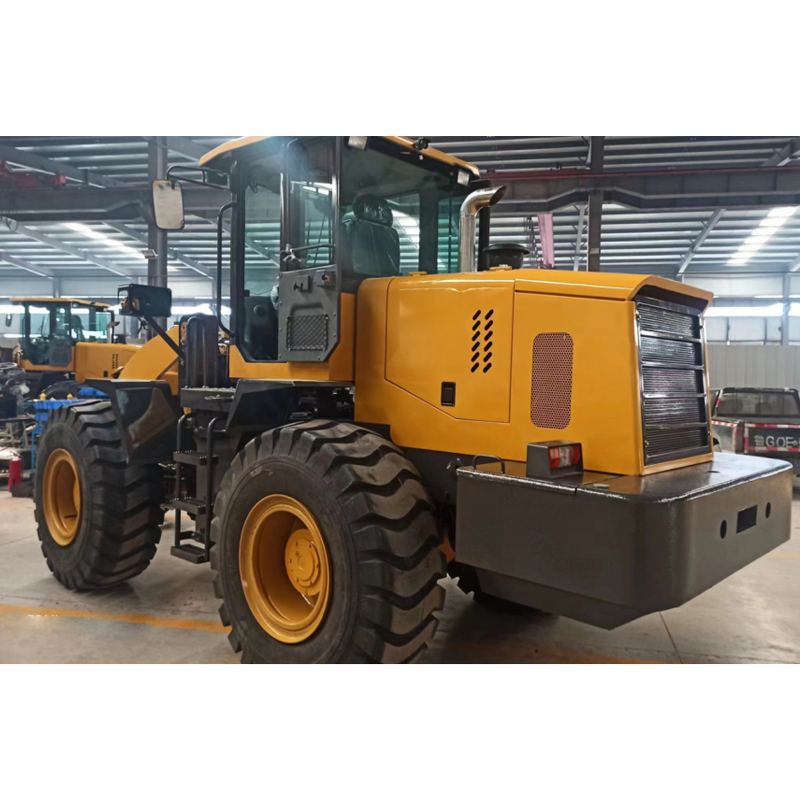

4 Ton Wheel Loader
High Efficiency: Fast shoveling, transport, and unloading reduce project time.
Excellent Mobility: Tires or tracks adapt to all terrains and job sites.
Easy Operation: Ergonomic wide-view cab for simple, precise control.
Strong Versatility: Supports multiple attachments for diverse tasks.
Low Maintenance & Cost: Simple structure, less downtime, and high compaction when paired with impact roller.
Eco-Friendly & Safe: Low noise/vibration, enhanced safety for operator and environment.
Product Introduction
The 4 Ton Wheel Loader is a self-propelled earth-moving machine engineered for shoveling, loading, transporting, and unloading a wide range of materials. With a rated load of 3000kg and a powerful 92kW engine, this medium-sized loader offers excellent performance, reliability, and operational flexibility. Ideal for construction, mining, agriculture, and municipal works, the is a versatile machine built for tough environments and continuous operations.
Product Details
Robust Powertrain
Powered by a high-torque, turbocharged diesel engine (Weichai/Deutz), the ZL936 delivers outstanding performance with excellent fuel efficiency, meeting the demands of continuous heavy-duty operations.
High-Efficiency Hydraulics
Equipped with a responsive and durable hydraulic system, this loader ensures fast boom lifting, precise bucket control, and strong breakout force, enhancing productivity in every task.
Built for Durability
Constructed with a reinforced heavy-duty chassis, wear-resistant bucket teeth, and high-strength structural components, the ZL936 is engineered to withstand extreme working environments and extended operation hours.
Superior Mobility & Versatility
The tire-type travel system offers agile maneuverability, reduced ground impact, and smooth operation across various terrains—ideal for construction sites, farms, quarries, and municipal projects.
Operator Comfort & Safety
Designed with a spacious, ergonomically optimized cab featuring enhanced visibility, intuitive control layout, and a vibration-damping seat to reduce operator fatigue and improve working efficiency.
Advanced Power Shift Transmission
The loader’s 4-speed forward and 2-speed reverse power shift gearbox ensures smooth gear transitions, delivering consistent torque and improving travel and loading performance across all load conditions.
Product Specifications
Performance | Rated loading | 4000kg |
Overall weight | 11200kg | |
Bucket capacity | 2.0m3 | |
Maximum traction force | 95KN | |
Maximum breakout force | 127KN | |
Maximum grade ability | 30℃ | |
Maximum dump height | 3200mm | |
Maximum dump reach | 1260mm | |
Overall dimension (L×W×H) | 7560*2440*3300mm | |
Minimum turning radius | 5929mm | |
Digging depth(minimum) | 150 mm | |
Tipping load | 9860KG | |
Max angle of steering | 45° | |
Engine | Model | Duetz TD226B |
Type | Vertical, in-line, water cooled, 4-stroke diesel engine | |
NO. of cylinder-bore*stroke | 6-108*125 | |
Rated power | 92kw—2200r/min | |
Maximum torque | 500N.m | |
Min. fuel-consume ratio | ≦210Kw h | |
Emission standards | Euro Ⅱ | |
Transmission system | Torque converter | YJ315-X |
Gearbox mode | Power shaft normally engaged straight gear | |
Gears | 4 forward 2 reverse | |
Maximum speed | 49km/h | |
Drive axles | Main reducing spiral | Bevel gear grade 1reduction |
Decelerating mode | Planetary reduction grade 1 | |
Wheel base | 2820mm | |
Wheel tread | 1300mm | |
Ground clearance | 400mm | |
Hydraulic system | System working pressure | 16,5MPa |
Boom lifting time | 4.83 | |
Total time | 9.15±0.5s | |
Brake system | Service brake | Air assist disc brake on 4 wheels |
Parking brake | Manual disk brake | |
Tyre | Type specification | 20.5-25 |
Front tyre pressure | 0.4Mpa | |
Rear tyre pressure | 0.35Mpa |
Product Application Scenarios
Construction sites: Roadbed filling, aggregate transport, material loading
Mining and quarry operations: Earth and stone loading, hauling
Agriculture: Handling grains, silage, and fertilizers
Municipal services: Snow removal, waste handling, landscaping
Asphalt & concrete mixing plants: Loading aggregates and sand
Why Choose Our 4 Ton Wheel Loader?
Power & Performance: Equipped with a high-torque Weichai/Deutz engine and a robust power-shift transmission, it delivers exceptional power and speed control in all terrains.
Efficient Hydraulic System: Smooth operation with quick response time thanks to 16MPa system pressure and reliable cylinder configuration.
Durability You Can Trust: Built with wear-resistant steel components, advanced heat-treated gear sets, and rugged bucket teeth – designed to withstand the harshest job sites.
Easy Maintenance: Modular component design and widely available spare parts ensure low maintenance cost and minimal downtime.
Operator Comfort & Safety: Spacious cabin, ergonomic controls, clear visibility, and reliable braking system ensure safe and fatigue-free operation.
Versatility: Compatible with various attachments and optional configurations for specialized tasks.
