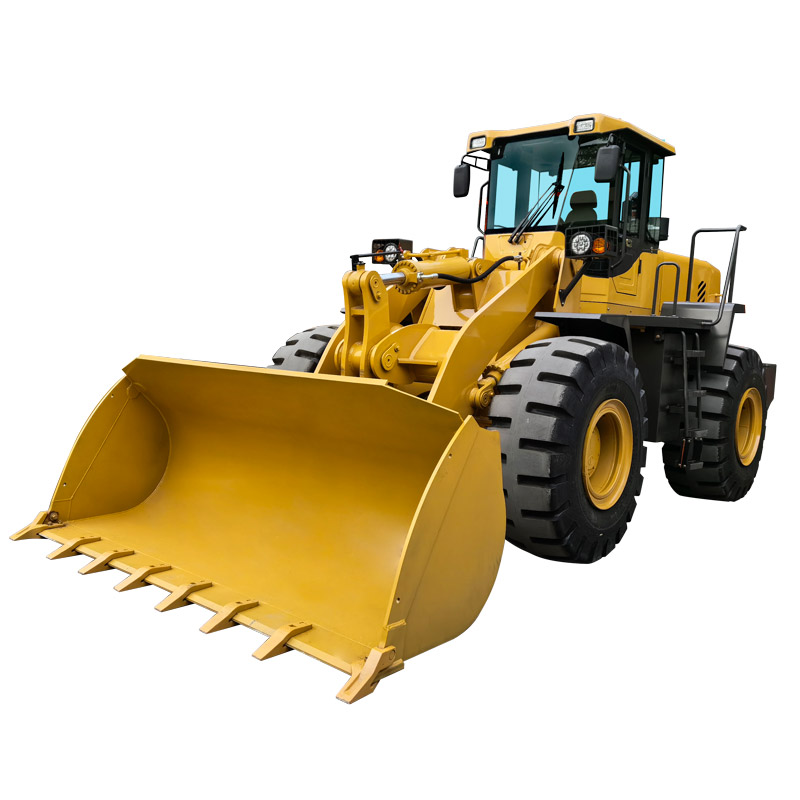

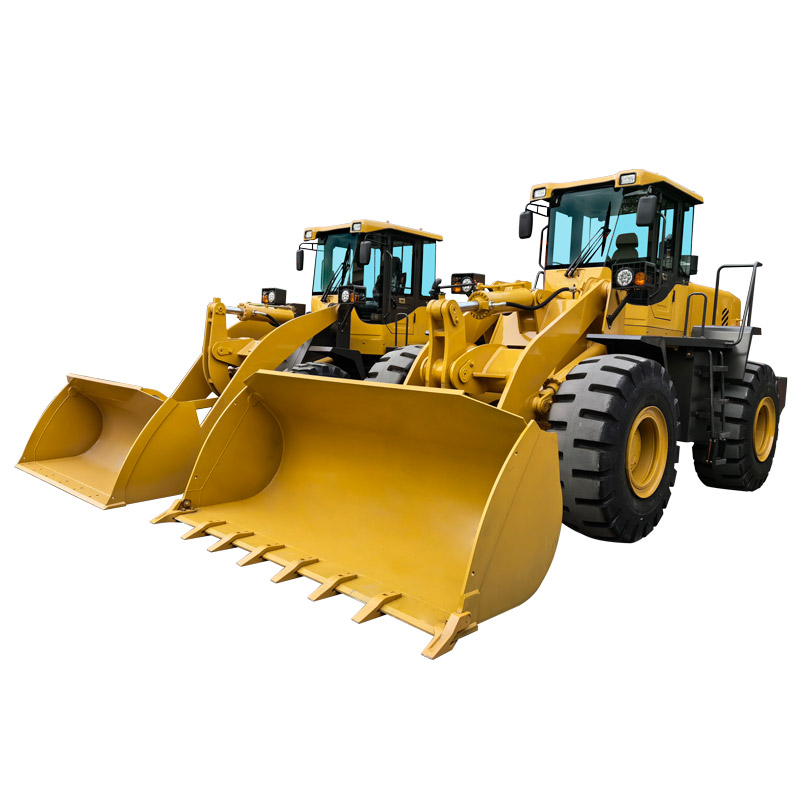

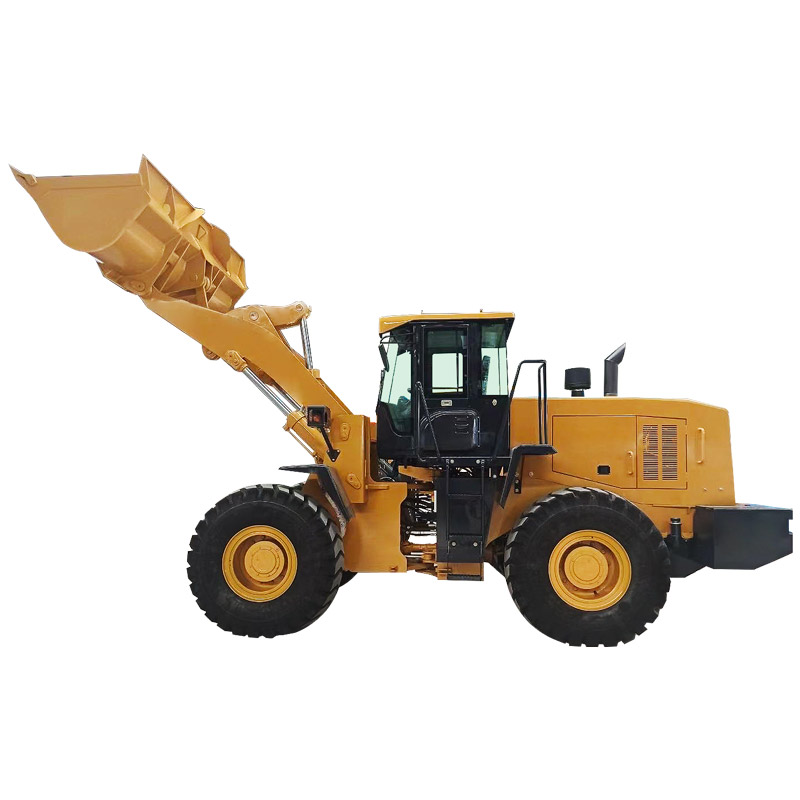

5 Ton Wheel Loader
High Efficiency: Fast shoveling, transport, and unloading reduce project time.
Excellent Mobility: Tires or tracks adapt to all terrains and job sites.
Easy Operation: Ergonomic wide-view cab for simple, precise control.
Strong Versatility: Supports multiple attachments for diverse tasks.
Low Maintenance & Cost: Simple structure, less downtime, and high compaction when paired with impact roller.
Eco-Friendly & Safe: Low noise/vibration, enhanced safety for operator and environment.
Product Introduction
The 5-ton Wheel Loader is a powerful, self-propelled construction machine designed for a wide range of material handling and earth-moving tasks. Engineered for strength, efficiency, and versatility, this heavy-duty loader is perfect for industrial construction, mining, road building, and material transport. With advanced hydraulic systems, durable components, and superior lifting capacity, it delivers reliable performance even in the toughest working conditions.
Product Details
Robust Powertrain: Equipped with a high-torque, turbocharged diesel engine for optimal performance and fuel efficiency.
Efficient Hydraulics: Advanced hydraulic system provides fast lifting, precise control, and powerful digging capability.
High Durability: Heavy-duty chassis, wear-resistant bucket teeth, and reinforced structural parts extend service life.
Superior Mobility: Tire-type travel system ensures excellent maneuverability and minimal surface damage—ideal for a wide variety of terrains.
Operator Comfort: Spacious cab with ergonomic controls, improved visibility, and shock-absorbing seat for fatigue-free operation.
Advanced Gearbox: Power shift transmission ensures smooth gear transitions for efficient travel and material loading.
Product Specifications
Performance | Rated loading | 5000kg |
Overall weight | 17200kg | |
Bucket capacity | 3m³ | |
Maximum traction force | 160KN | |
Maximum breakout force | ≥180KN | |
Maximum grade ability | 38℃ | |
Maximum dump height | 3100mm | |
Maximum dump reach | 1200mm | |
Overall dimension (L×W×H) | 8453×3024×3385mm | |
Minimum turning radius | 6201mm | |
Engine | Model | WeichaiWP10G220E22 |
Type | lnline water cooling dry cylinder injection | |
NO. of cylinder-bore*stroke | 6－126×130mm | |
Rated power | 162kw--2200r/min | |
Maximum torque | 920N.m | |
Min. fuel-consume ratio | ≤215g/kw.h | |
Transmission system | Torque converter | Single stage four element twin turbine hydraulic torque converter |
Gearbox mode | Planetary power transmission | |
Gears | 2 forward shift 1reverse shift | |
Maximum speed | 38km/h | |
Drive axles | Main reducing spiral | Bevel gear grade 1reduction |
Decelerating mode | Planetary reduction grade 1 | |
Wheel base | 3200mm | |
Wheel tread | 2250mm | |
Ground clearance | 450mm | |
Hydraulic system | System working pressure | 18MPa |
Boom lifting time | 5.95±0.2s | |
Total time | 10.95±0.5s | |
Fuel tank capacity | 265L | |
function of leveling automatically | yes | |
Brake system | Service brake | Air assist disc brake on 4 wheels |
Parking brake | Manual disk brake | |
Tyre | Type specification | 23.5-25 |
Front tyre pressure | 0.4Mpa | |
Rear tyre pressure | 0.35Mpa |
Application Scenarios
Road Construction & Infrastructure: Ideal for earthmoving, leveling, and aggregate transport in highway and urban development.
Mining & Quarrying: Excels in harsh environments for handling gravel, ores, and other heavy materials.
Agricultural & Forestry Work: Moves bulk materials such as soil, hay, woodchips, and fertilizers with ease.
Waste Management & Recycling Yards: Handles large volumes of waste materials with precision and speed.
Industrial Sites & Ports: Performs container unloading, bulk handling, and transport operations efficiently.
Why Choose Our 5-Ton Wheel Loader?
Proven Performance: Tested in extreme conditions to deliver continuous and stable operation
Customizable Design: Supports various attachments for bulldozing, lifting, and material handling
Low Operating Costs: Designed for high fuel efficiency, minimal maintenance, and long service intervals
Safety-Focused: Equipped with reliable braking systems, visibility enhancements, and rollover protection
Trusted Quality: Built by an industry-recognized manufacturer with ISO and CE certifications
Global Support: We provide full technical support, spare parts supply, and professional after-sales service
