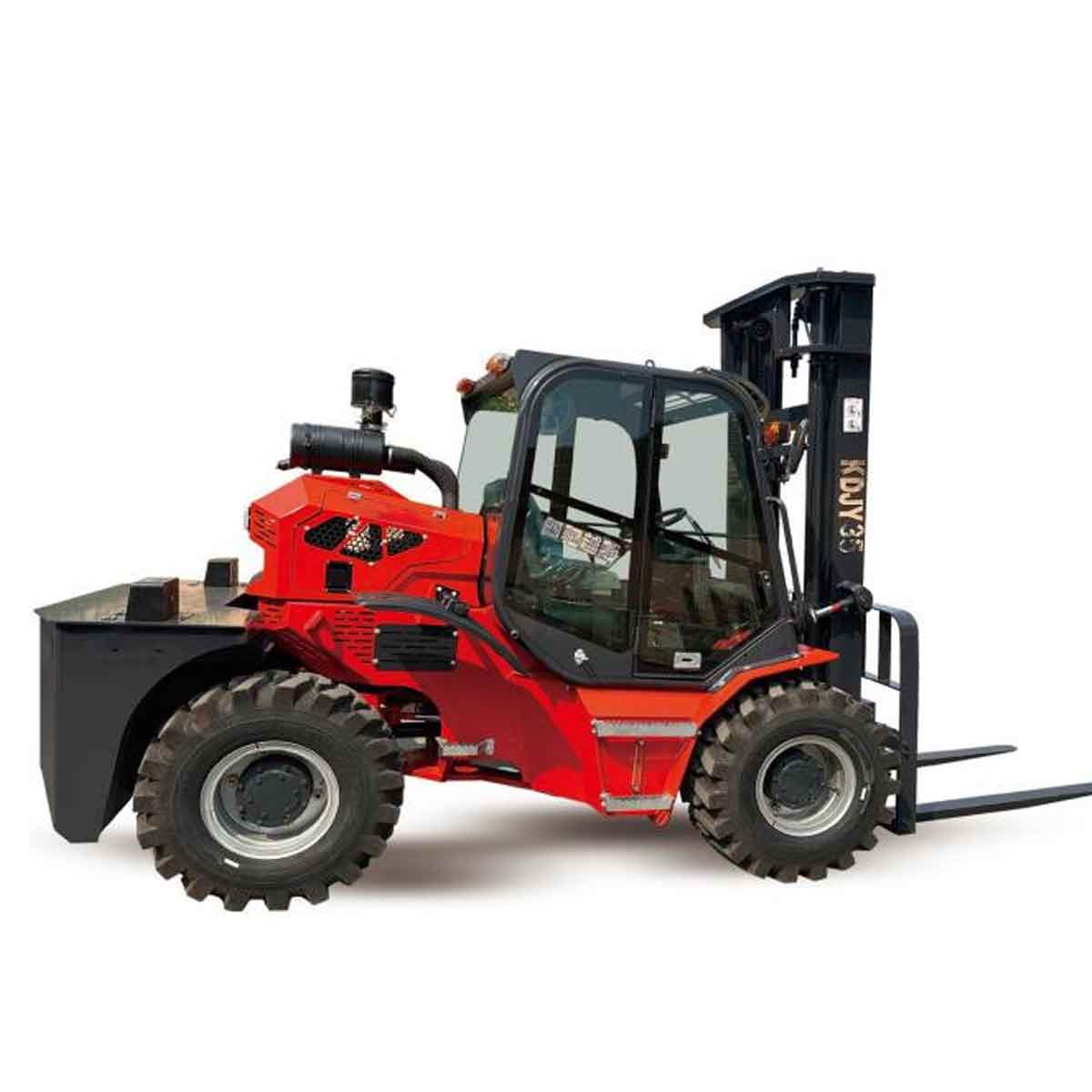

3.5T Off Road Forklift For Sale
Off-Road Power: All-wheel drive, >300mm ground clearance, and >30° departure angle for superior terrain adaptability.
High Speed: Reaches speeds over 40 km/h for efficient operation across large, rough areas.
Multi-Functionality: Supports various attachments like buckets and clamps to meet diverse handling needs.
Heavy Load Ready: High chassis and strong structure for transporting wide or irregular loads.
Agile Control: Articulated frame enables tight turning radius and flexible maneuvering.
Efficient Drive: Hydrostatic system with dual DA control offers stepless adjustment, fuel efficiency, and consistent traction.
Product Description

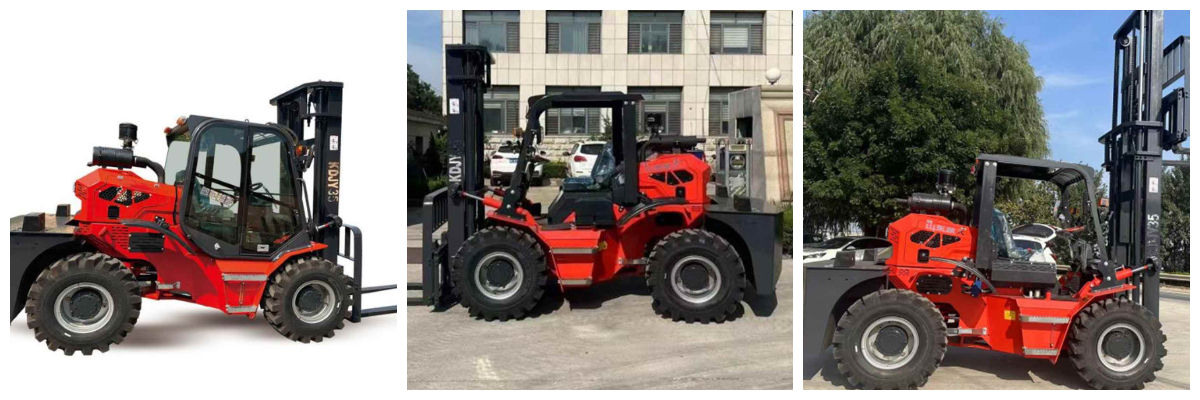

Rear articulated structure: The articulation point is located in the middle and rear part of the vehicle body (not in the middle), with a fixed cockpit and cargo forks in the front and a power unit and axle in the rear. Steering and vehicle body bending are achieved through the rear articulated point. This enhances the grip of the rear-wheel drive and optimizes the power distribution when climbing a hill with a heavy load, while retaining the high passability and flexible steering characteristics of the articulated structure.
Product Parameters
Rated Load(kg) | 3.5T |
Max.unloading Height(mm) | 5200 |
Dimensions(mm) | 3400×1850×2250mm |
Max.Grade Ability | ≤35° |
Drive mode | Four-wheel drive |
Wheelbase(mm) | 1740mm |
Min.Turning Radius(mm) | 2800mm |
Engine Model | All Shiba 495 |
Engine power(kw) | 36.8-77.2kw |
Battery voltage/capacity | 24/60（V/Ah） |
Mast tilt angle (front/rear) | 6°/12° |
Typical application scenarios
Mining and steep slope transportation: Frequent handling of heavy-loaded ores and equipment in slope environments (such as open-pit mines).
Forestry logging: Hauling timber in rugged mountains requires both traction and terrain adaptability.
Application Scenarios
Construction Sites – Navigate loose gravel, slopes, and muddy surfaces effortlessly.
Airports and Railway Stations – Reliable handling for large and irregular cargo on uneven platforms.
Docks and Ports – Ideal for container yards and heavy goods logistics in coastal and industrial areas.
Agricultural and Mining Fields – Adaptable to complex terrain with multiple attachments for diversified operations.
