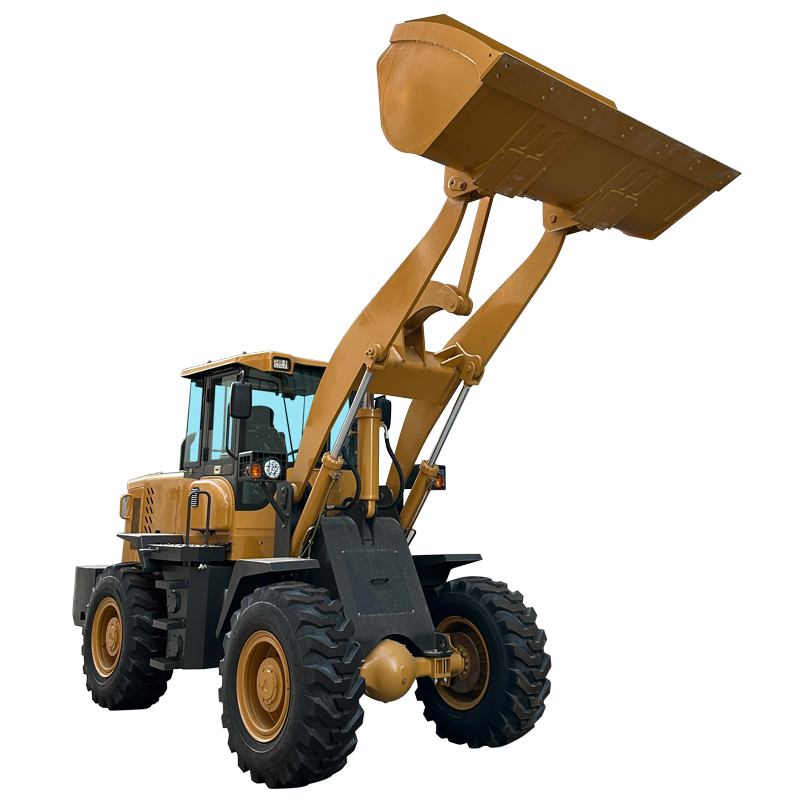

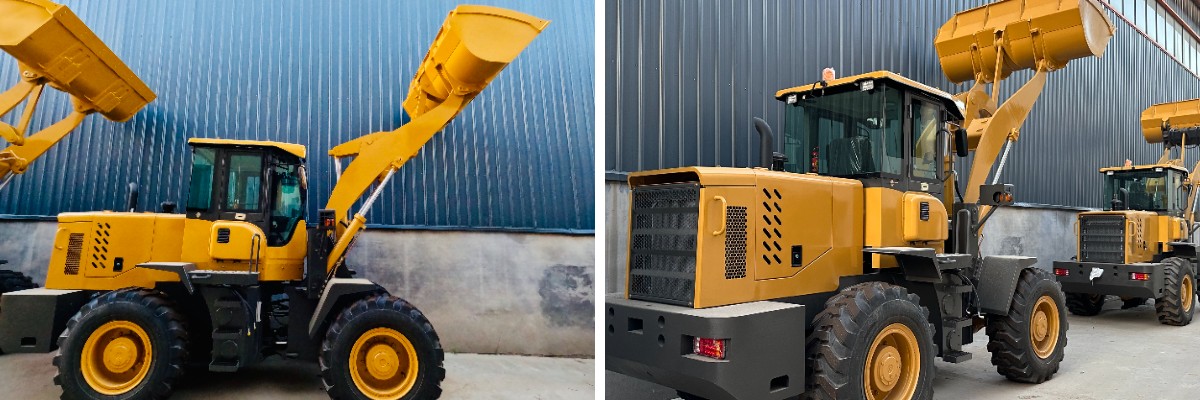

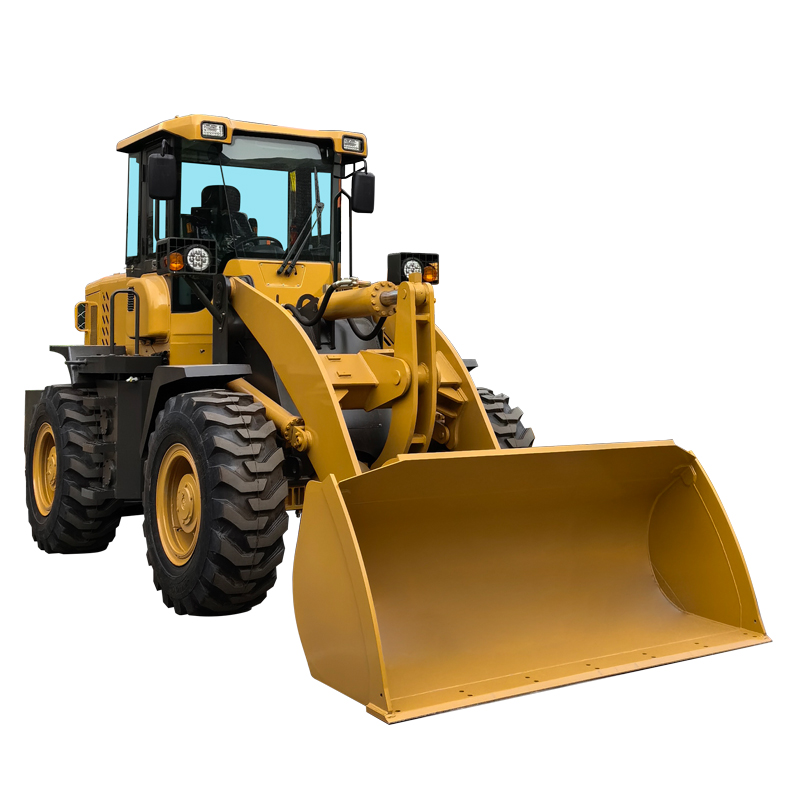

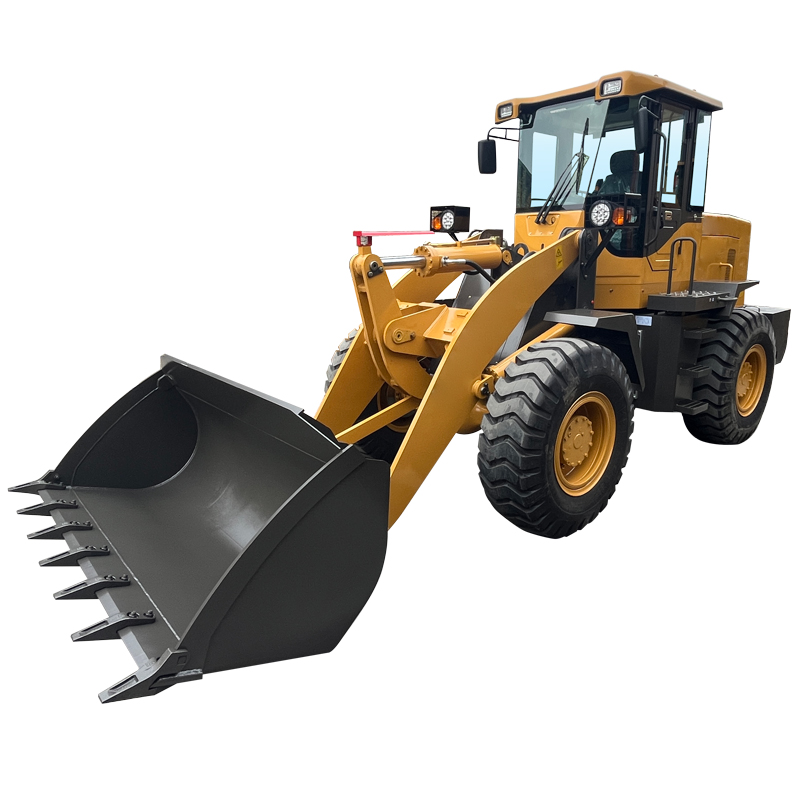

3 Ton Wheel Loader
High Efficiency: Fast shoveling, transport, and unloading reduce project time.
Excellent Mobility: Tires or tracks adapt to all terrains and job sites.
Easy Operation: Ergonomic wide-view cab for simple, precise control.
Strong Versatility: Supports multiple attachments for diverse tasks.
Low Maintenance & Cost: Simple structure, less downtime, and high compaction when paired with impact roller.
Eco-Friendly & Safe: Low noise/vibration, enhanced safety for operator and environment.
Product Introduction
The 3 Ton Wheel Loader is a robust and versatile earth-moving machine designed for efficient loading, transportation, and unloading across a variety of terrains. Powered by a turbocharged diesel engine from Weichai or Deutz, this loader delivers strong performance, high fuel efficiency, and long-lasting durability—ideal for construction sites, roadworks, mining, agriculture, and port logistics.
With a combination of advanced hydraulic systems, reinforced structural components, and an ergonomic cab, the ensures optimal productivity with reduced operator fatigue. Whether you're moving soil, gravel, sand, or other materials, this machine handles the job with power and precision.
Product Details
Robust Powertrain
Equipped with a high-torque, turbocharged diesel engine, the ZL936 offers excellent performance with optimal fuel efficiency—perfect for demanding work conditions.
Efficient Hydraulic System
Advanced hydraulics enable fast bucket action, precise control, and superior digging power, significantly enhancing your job-site productivity.
Heavy-Duty Durability

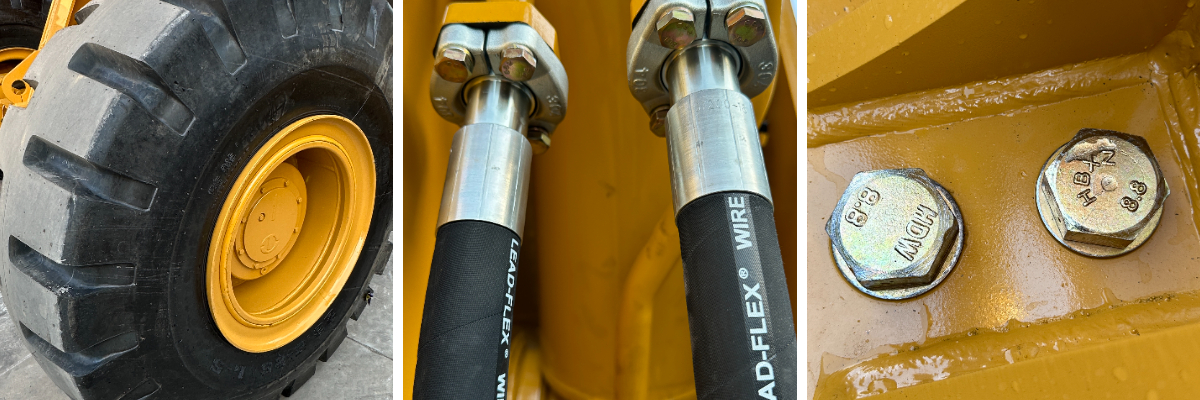

Constructed with a reinforced chassis, wear-resistant bucket teeth, and high-strength steel, this loader is built to withstand tough environments and long working hours.
Superior Mobility
The tire-based travel system offers easy maneuverability, reduced surface impact, and adaptability to various terrains including mud, gravel, and uneven ground.
Operator Comfort
Enjoy a spacious cabin with ergonomic controls, wide visibility, and a shock-absorbing suspension seat—making long hours of operation fatigue-free and safe.
Power Shift Transmission
The 4-forward, 2-reverse power shift gearbox ensures smooth gear transitions for efficient loading cycles and superior travel performance.
Product Specifications
Rated loading | 3000kg |
Overall weight | 9800kg |
Bucket capacity | 1.8m3 |
Maximum traction force | 95KN |
Maximum breakout force | 127KN |
Maximum grade ability | 35℃ |
Maximum dump height | 3200mm |
Maximum dump reach | 1200mm |
Overall dimension (L×W×H) | 7260*2440*3330mm |
Minimum turning radius | 5929mm |
Model | Weichai/Duetz |
Type | In line/water-cooled/vertical/four stroke |
NO. of cylinder-bore*stroke | 6-108*125 |
Rated power | 92kw—2200r/min |
Maximum torque | 500N.m |
Min. fuel-consume ratio | ≦210Kw/ h |
Torque converter | YJ315-X |
Gearbox mode | power shift |
Gears | 4 forward 2 reverse |
Maximum speed | 40km/h |
Main reducing spiral | Bevel gear grade 1reduction |
Decelerating mode | Planetary reduction grade 1 |
Wheel base | 2750mm |
Wheel tread | 1500mm |
Ground clearance | 370mm |
System working pressure | 16MPa |
Boom lifting time | 4.5 |
Total time | 8.8±0.5s |
Service brake | Air assist disc brake on 4 wheels |
Parking brake | Manual disk brake |
Type specification | 17.5-25 |
Front tyre pressure | 0.4Mpa |
Rear tyre pressure | 0.35Mpa |
Product Application Scenarios
Construction Sites: Earthmoving, backfilling, foundation prep
Road Works: Roadbed filling, material transport
Mining & Quarries: Rock, gravel, and ore loading
Agriculture: Grain, feed, and bulk material handling
Ports & Yards: Container and bulk cargo loading/unloading
Why Choose Our 3 Ton Wheel Loader?
Proven Engine Brands – Reliable performance with global support
Competitive Pricing – High value for your investment
Customizable Options – Buckets, attachments, and engine models available
Quick Delivery – Streamlined production and logistics
Global Export Experience – Trusted by clients in 30+ countries
Excellent After-Sales Service – Technical support and spare parts supply
