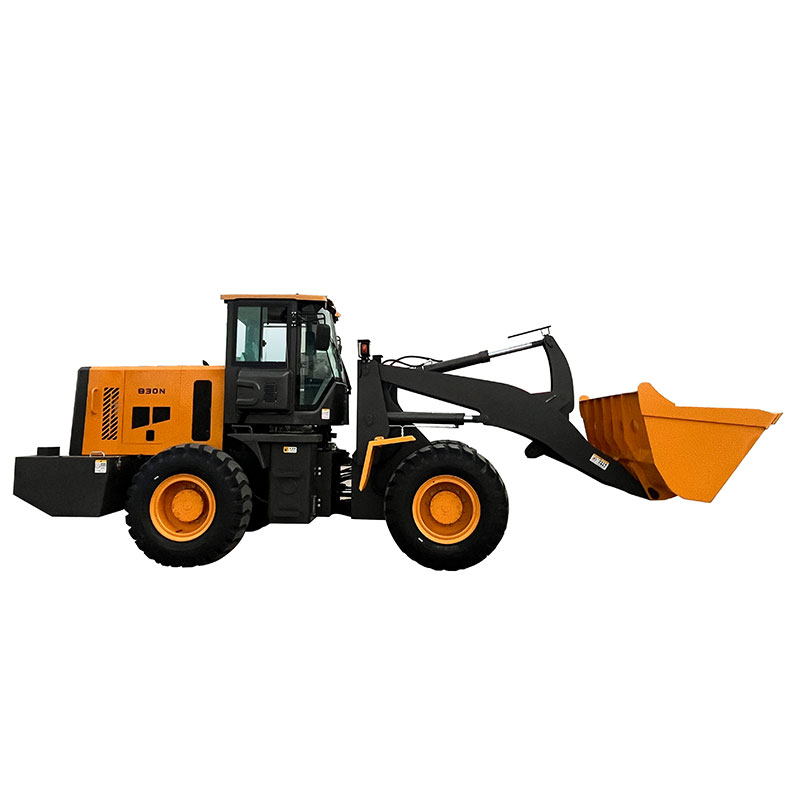

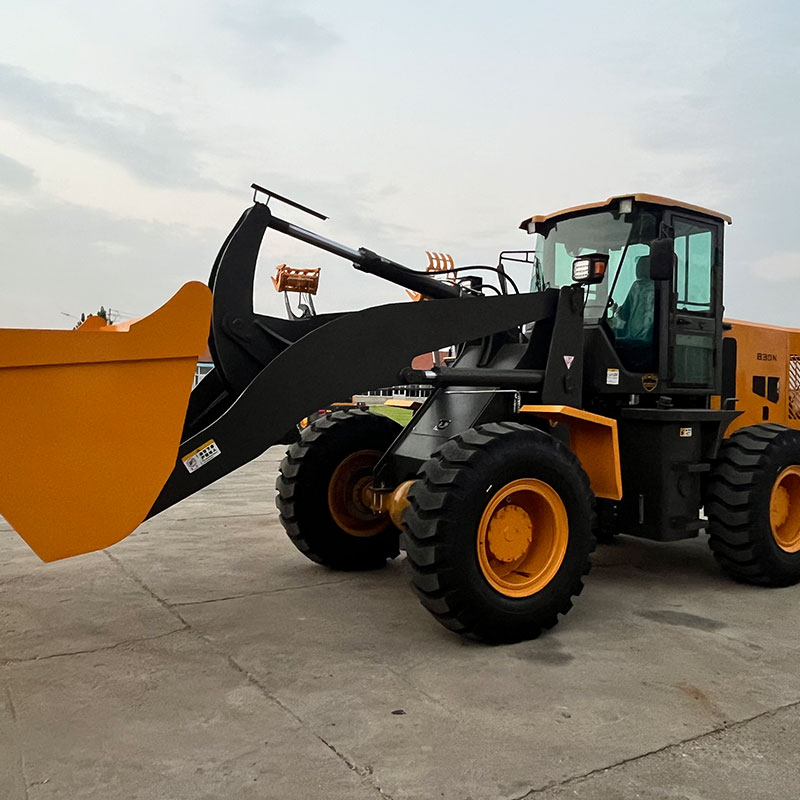

8 Ton Articulated Front Loader
1,WEICHAI DEUTZ engine, CUMMINS engine can be optional
2, Mechanical joystick control forward, backward easier operation, hydraulic joystick control can be optional
3,Well-designed quick hitch can be used for changing different attachments.
4,Different color can be painted: red, green, blue, yellow as u like
5，Maintenance and Durability: Designed for easy maintenance, this loader features a rugged structure that ensures long-lasting durability in harsh conditions. Equipped with centralized filters and easy-to-maintain service points.

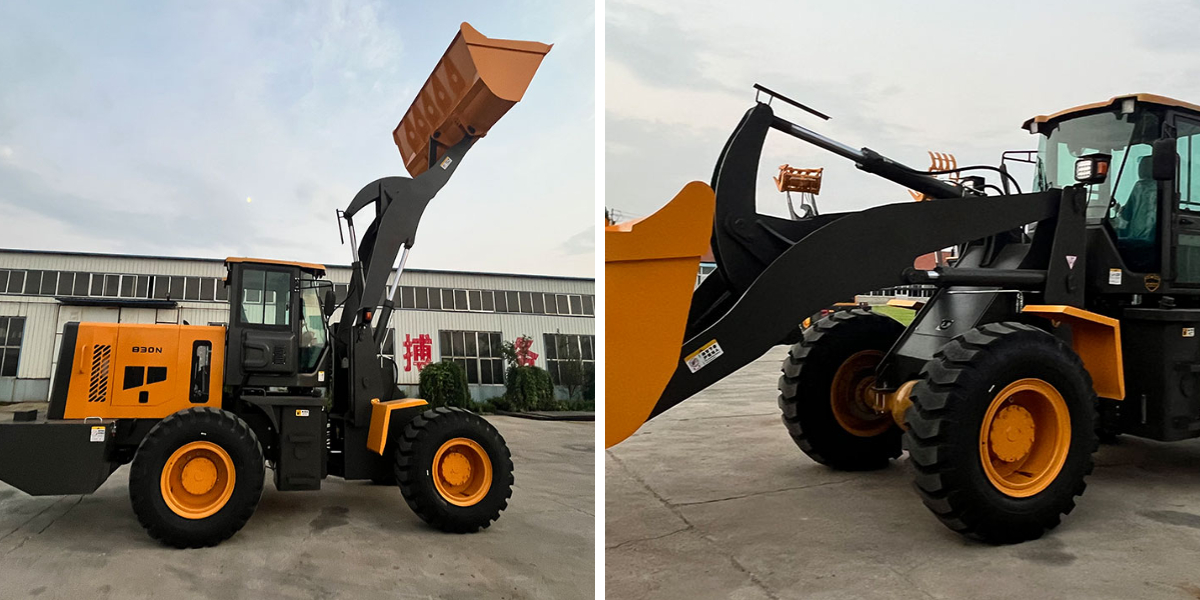

Product Introduction of Articulated Front Loader
Wogong has a solid machine structure that can withstand various working conditions. The heavy-duty components can withstand various working conditions, and the frame of Wogong electric wheel loader has undergone multiple impact tests, and the strength of the components has been verified by long-term reliability tests.

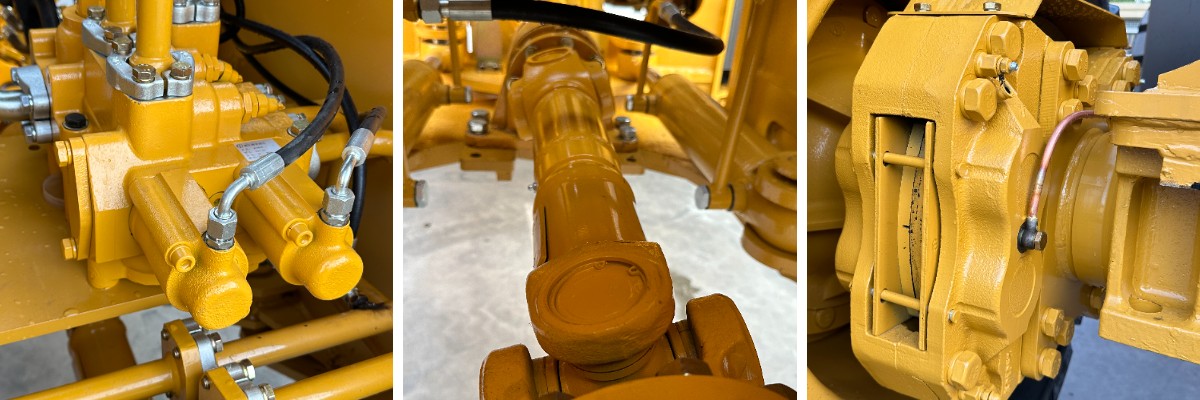

Product Details of Articulated Front Loader
Variable dozer blade ：width of the dozer blade is easily adjusted according to the width of the down chassis .ust pull out the pin,rotate the auxiliary shovel 180 degrees in word and insert the pin.
Swing Boom ：Can be used in small area work sandworking along the wall.
Hydraulic oil radiator /cooler：In the heat exchanger.it conducts efficienheat exchange with forced-flowing cold airso that the oil temperature is reduced to theworkingtemperature to ensure that themain engine can continue to operatenormally,so that the work can be carriedout smoothly.
Technical Parameters of Articulated Front Loader
| Engine Power | 103kw |
| Transmission | 315 split high and low speed |
| Drive axle | 28 Wheel Hub |
| Overall weight | 8900 |
| Bucket width | 2460 |
| Unloading height | 4500 |
| Basket | 2.4m 2.2m² grain bucket |
| Unloading distance at maximum lifting | 1080 |
| Improvement time | 4.6 |
| Unloading time | 0.47 |
| Descent time | 3.34 |
| Triple sum | 8.41 |
| External dimensions L*W*H | 8270*2480*3130 |
| Unloading angle | 34 |
| Maximum turning angle of the bucket on the ground | 49 |
| Wheelbase | 2900 |
| Track width | 1670 |
| Minimum ground clearance | 400 |
| Turning radius (tire center) | 5800 |
| Passing radius (outside of bucket) | 7100 |
| Driving speed (forward low gear) | 15.65 |
| Maximum driving speed (forward high gear) | 31.3 |
| Rear overhang distance | 2030 |
| Hinge center to rear wheel center distance | 1600 |
| Rated load capacity | 2150 |
| Static tipping load | 4300 |
Why Choose Us
1，Fair Price：All products are manufacturersdirect sales, avoid middlemen toearn price difference, give customersthe biggest proft space.
2，Stable Quality：has excellenttechnical team, perfect productionprocess,stable suppliers.
3，ProfessionalService：Enthusiastic sales staff are available24 hours a day,intimate after-salesstaff at any time to provide effcientcomprehensive after-sales service.
4，Independent SpareParts Company：factory established spareparts company to provide the mostcomprehensive parts procurementservices, greatly saving time.
