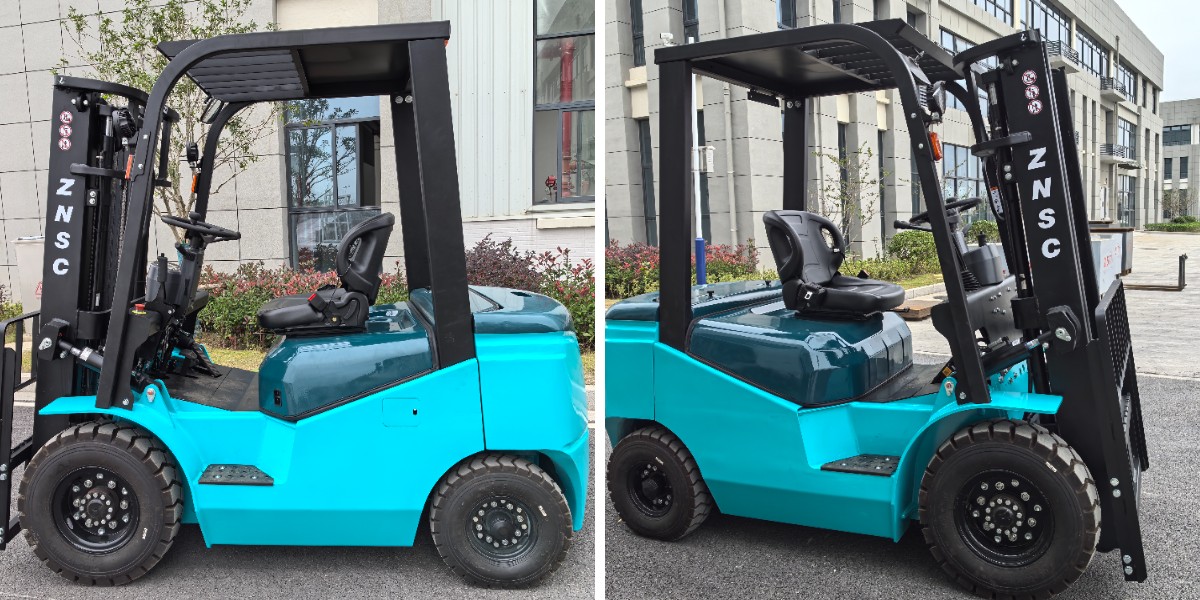

2 Ton Electric Forklift
1. They adopt front dual drive, electric steering and full AC maintenance-free system.
2. The front dual drive motor provides greater power to ensure better climbing and escape capabilities.
3. The high-power motor ensures efficient operation. It is very suitable for carrying small and medium-sized goods in narrow passages, with fast driving speed, equipped with large-capacity batteries, ergonomic design, easy operation, safe and reliable.
Product Description
Electric forklifts are modern industrial handling vehicles powered by batteries. They abandon the fuel consumption and exhaust emissions of traditional internal combustion forklifts, and through advanced motor drive technology and intelligent control systems, they provide clean, quiet, low-operating-cost material lifting and horizontal transportation services for a wide range of industries such as warehouses, factories, distribution centers, cold chains, food and medicine, and electronic manufacturing. They are an ideal choice for modern green logistics and lean production.

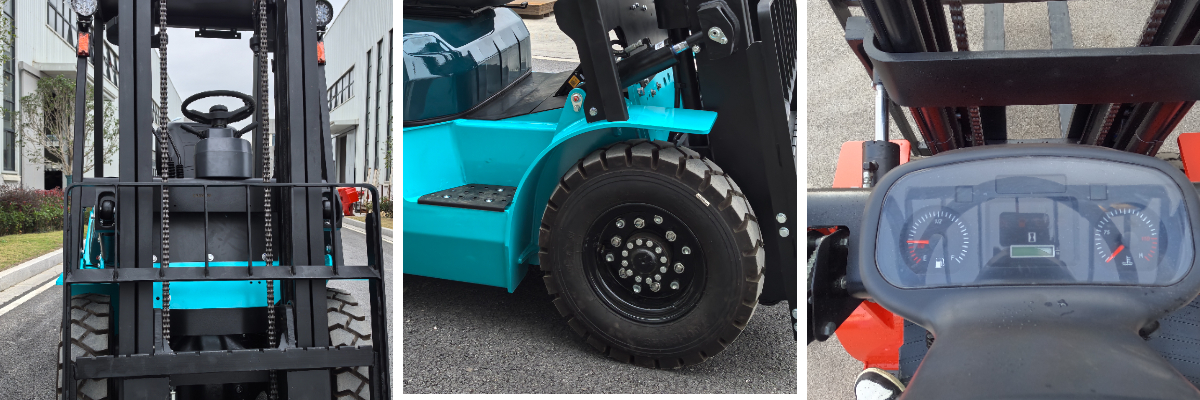

2 ton electric forklift product features
Super strong gantry: Thickened high-quality steel, composite plate chain + double chain structure, strong and durable, double safety.
Safe and intelligent operating table: Hand/foot double brake emergency stop, visible power + low power alarm, prevent power loss damage. Customizable solid/non-marking tires.
Efficient driving system: High-performance rubber tires, strong obstacle crossing, good shock absorption, fast speed, and soaring efficiency.
Technical Parameters
Model | CPD20 |
Rated lifting capacity | 2000 |
Load center distance | 500 |
Maximum lifting height | 3000 |
Free lifting height | 140 |
Front mast inclination | 6° |
Rear door frame inclination | 10° |
Maximum lifting speed without load | 400 |
Maximum lifting speed at full load | 320 |
Maximum speed without load | 14 |
Maximum speed at full load | 12.5 |
Maximum climbing grade (empty/full load) | 20/15 |
Minimum turning diameter | 2300 |
Weight including battery | 3500 |
Wheelbase | 1660 |
Length without fork | 2550 |
Battery rated power | 80 |
Battery rated voltage | 280 |
Travel motor rated power | 10 |
Oil pump motor rated power | 12 |

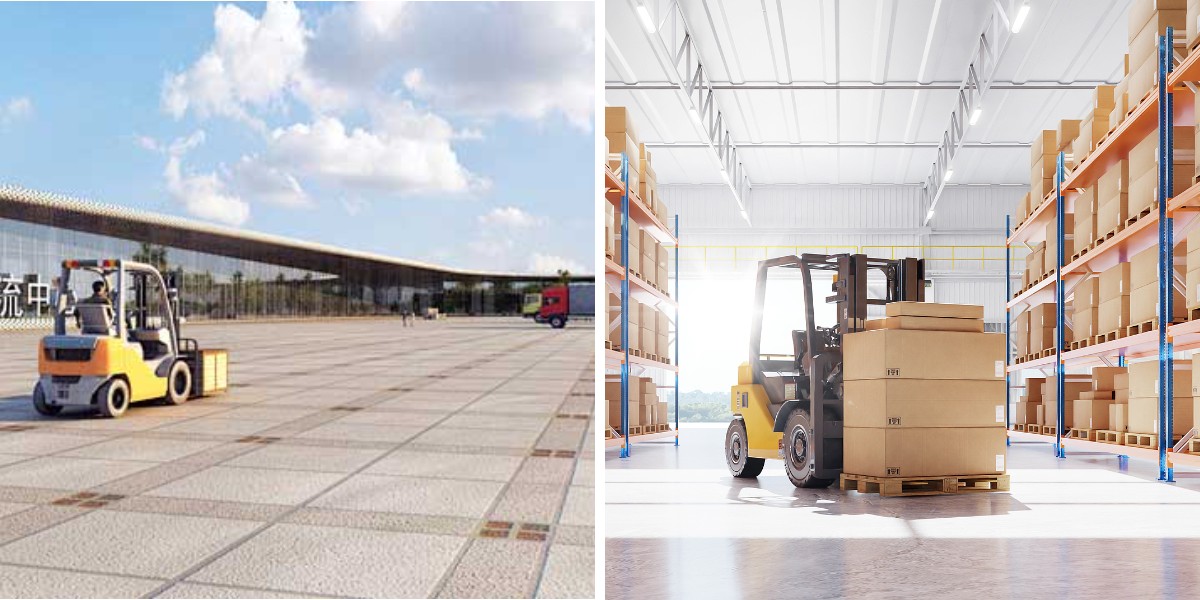

Typical application scenarios
Warehousing and logistics: high-bay warehouses, cold chain warehouses (no exhaust pollution).
Food and medicine: clean workshops, low-temperature cold storage (lithium battery low-temperature resistant models).
Electronic manufacturing: dust-free workshops with high anti-static requirements.
Retail and e-commerce: high-frequency pallet handling and sorting operations.
Airports and stations: luggage transfer, indoor and outdoor transition areas.
