Electric Front End Loader
Environmentally friendly and quiet: zero emission, low noise, and wide application scenarios.
Economical and efficient: operating costs (energy + maintenance) are greatly reduced, and production efficiency is high (fast response and good control).
Flexible and comfortable: compact size adapts to narrow spaces, and the operating environment is comfortable and safe.
Powerful performance: instantaneous high torque and fast power response.
Electric loader description
Electric wheel loaders are the pioneers of the green transformation of construction machinery. With their advantages of environmental protection, quietness, low operating costs and high efficiency, they are rapidly changing traditional construction scenes. Although they still face challenges such as high purchase costs and battery life and charging, with the rapid development of battery technology, the improvement of charging/battery replacement infrastructure and the emergence of economies of scale, the market competitiveness of electric loaders will continue to increase, and the scope of application will continue to expand, becoming one of the mainstream choices in the future construction machinery market.

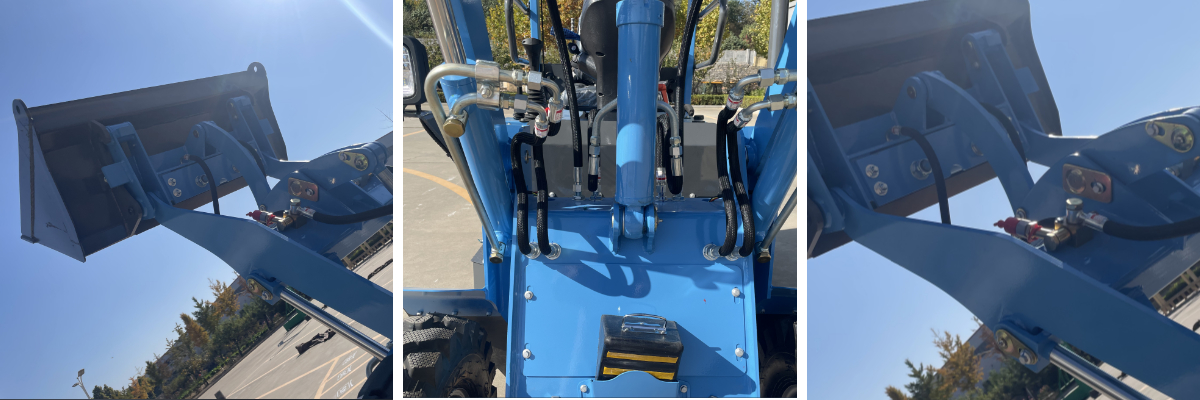

Thicker s-armS：Bold lever,greater rise,more load-bearing capacity,longer service life.
The overall ruggedness：The use of the overall casting axlereliable and durable quality,strongload-bearing capacity.
Many attachments：It can be equipped with quick hitch,many attachments for option
Luxury cabin interior:Adjustable comfortable seat and steering wheel
Technical parameters of electric loader
| Rated load (kg) | 400 |
| Overall weight (kg) | 1120 |
| Bucket capacity (m³） | 0.2 |
| Maximum steering radius | ±35° |
| Maximum turning radius (mm) | 2520 |
| Amplitude of the rear axle | 7° |
| Total time (s) | 7.5 |
| Working time (h) | 6 |
Speed (km/h) | low speed 10 Highway 18 |
| Dumping height (mm) | 1400 |
| Lifting height (mm) | 2160 |
| Overall dimension (mm) | 3260*1140*2085 |
| Dumping distance (mm) | 600 |
| Bucket width (mm) | 1040 |
| Wheel base (mm) | 1330 |
| Wheel tread (mm) | 840 |
| Ground clearance (mm) | 200 |
| Battery model | 6-EVF-150 |
| Battery type | Lead-acid maintenance-free type |
| Battery quantity | 5 |
| Battery capacity (kw) | 9 |
| Rated voltage (v) | 60 |
| Charging time (h) | 8 |
| Electrical system voltage (v) | 12 |
| Electric system | alternating current |
FAQ
Q: Can I operate a loader without experience?
Of course! We provide operator training videos and tutorials to increase confidence.
Q: Is it complicated to maintain?
A: Not at all. Our compact loaders are designed for easy maintenance, featuring:
(1) Accessible engine compartment for quick servicing;
(2) Durable components to minimize wear and tear;
(3) Clear maintenance instructions provided in the owner's manual.
Q: Do you provide after-sales support and warranty? Yes, we offer:
(1) Full warranty on all models;
(2) Comprehensive after-sales support, including technical help and spare parts;
Q: How long does it take to deliver a bulk order?
A: Delivery time depends on quantity and location, but with our global distribution network, we ensure timely and reliable shipping.
Q: How do I order a loader?
A: Contact us through our website and send an inquiry. Our team will assist you in selecting the right loader for your needs and provide a detailed quote.
