3.5T Articulated Forklift Rough Terrain
Off-Road Power: All-wheel drive, >300mm ground clearance, and >30° departure angle for superior terrain adaptability.
High Speed: Reaches speeds over 40 km/h for efficient operation across large, rough areas.
Multi-Functionality: Supports various attachments like buckets and clamps to meet diverse handling needs.
Heavy Load Ready: High chassis and strong structure for transporting wide or irregular loads.
Agile Control: Articulated frame enables tight turning radius and flexible maneuvering.
Efficient Drive: Hydrostatic system with dual DA control offers stepless adjustment, fuel efficiency, and consistent traction.
Product Description
The 3.5-ton articulated forklift is a material handling equipment designed for narrow spaces, with a maximum load capacity of 3.5 metric tons (3,500 kg). Its core feature is the articulated body structure (the front and rear bodies are connected by an articulated axle), which allows for flexible steering in limited spaces, making it suitable for warehouses, factories, construction sites and other scenarios.
Product Parameters
| Rated Load(kg) | 3.5T |
| Owerall Weight(kg) | 4800 |
| Dimensions(mm) | 3400× 1850×2250mm |
| Max.Grade Ability | ≤35° |
| Portal-frame Bottom(mm) | 240mm |
| Wheelbase center ground ciearance(mm) | 280mm |
| Wheelbase(mm) | 1740mm |
| Min.Turning Radius(mm) | 2800mm |
| Engine Model | Quanchai National IV 493 |
| Engine power(kw) | 36.8-77.2kw |
| Battery voltage/capacity | 24/60（V/Ah） |
Product Details

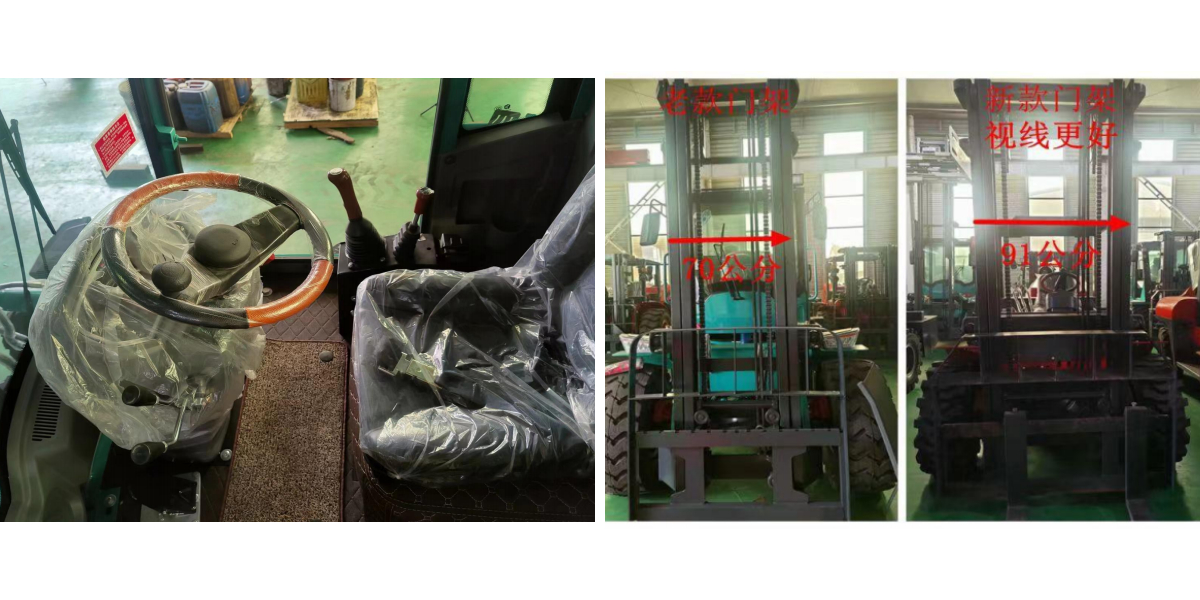

Adjustable seat and steering wheel: The adjustable steering wheel and new multifunctional instrument panel fully embody the concept of harmonious unity between man and machine. The adjustable seat can minimize work fatigue and improve driving safety.
Upgraded mast: wider and taller, broadens vision and prevents fatigue, is more adaptable to employees at work, and is safer
The 3.5-ton off-road forklift has an innovative articulated design and a compact body, perfectly balancing load capacity and space adaptability, making it an ideal choice for improving logistics efficiency in narrow spaces. Its flexibility and versatility have enabled it to gradually replace traditional forklifts in multiple industries and become one of the core equipment for modern material handling.
The 3.5T Rough Terrain Forklift is specially designed for efficient material handling in rugged environments such as construction sites, docks, airports, and mountainous areas. With its powerful drive system and robust structure, it ensures reliable performance on uneven and challenging terrains.
