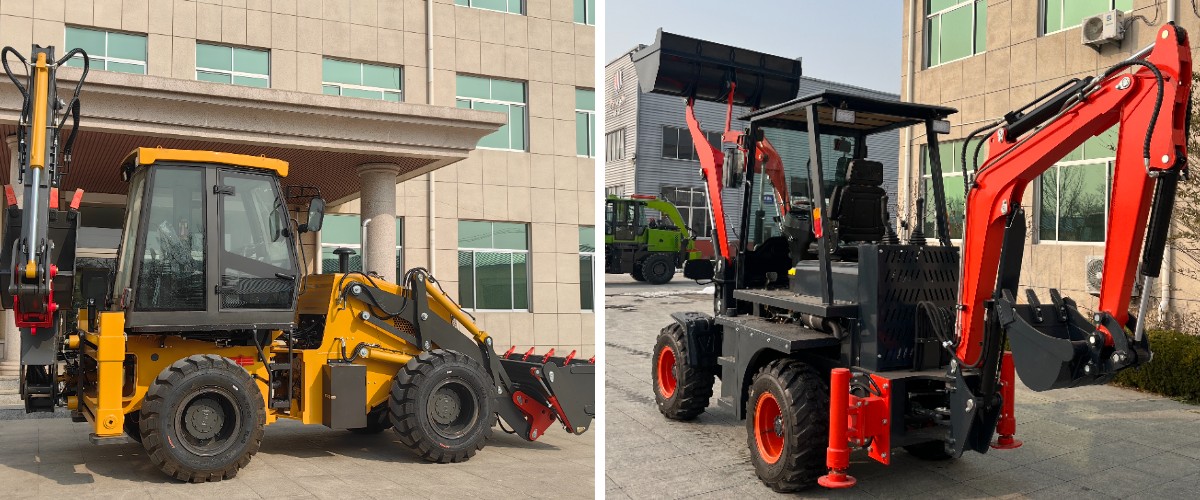

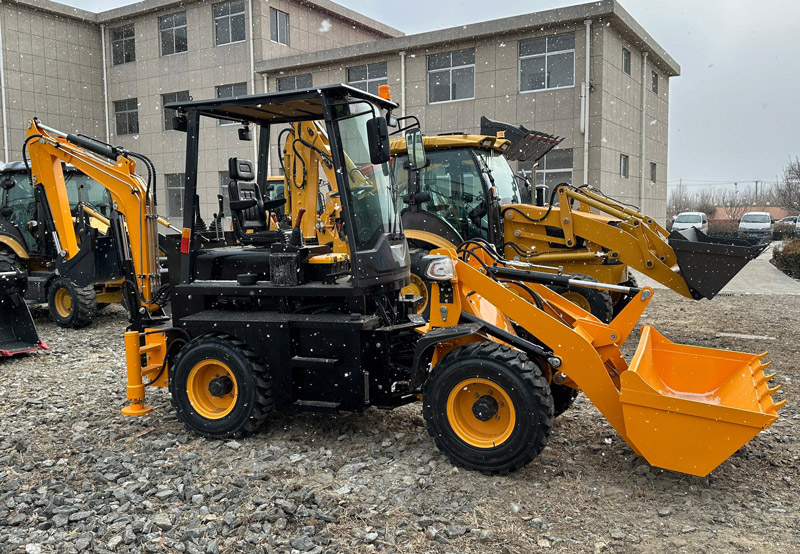

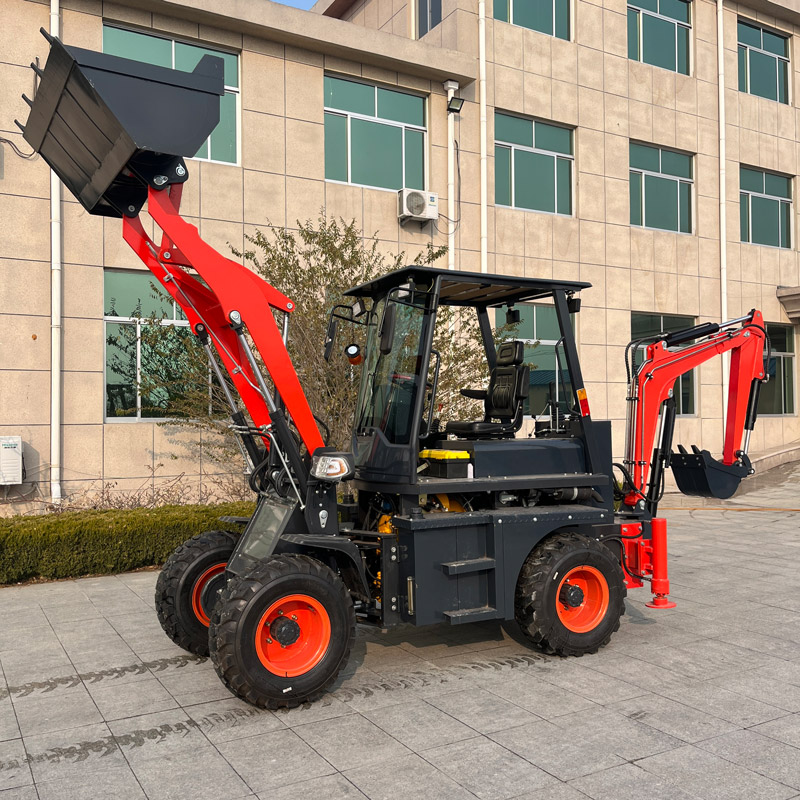

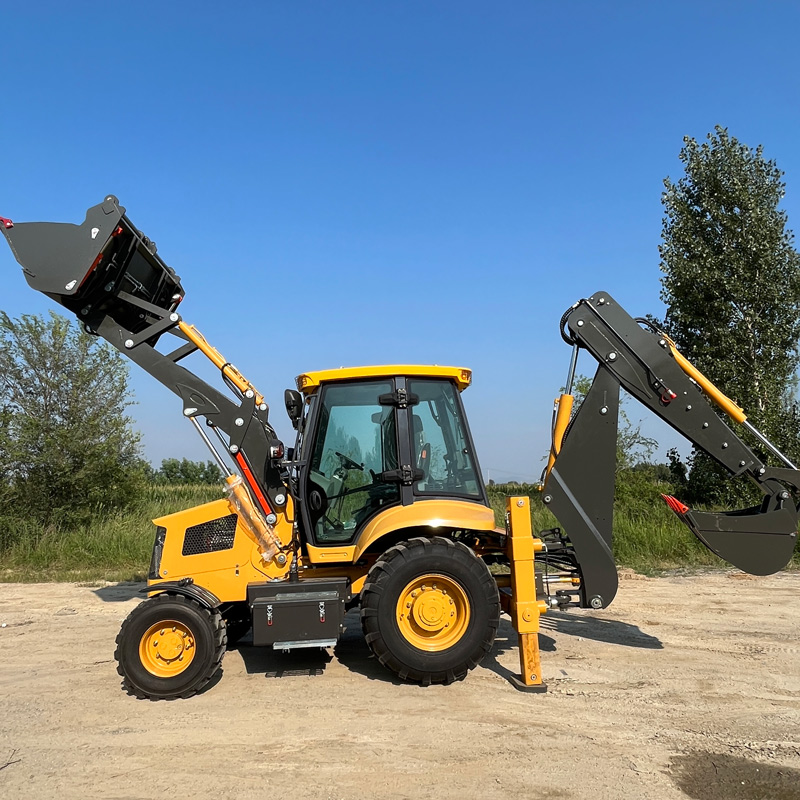

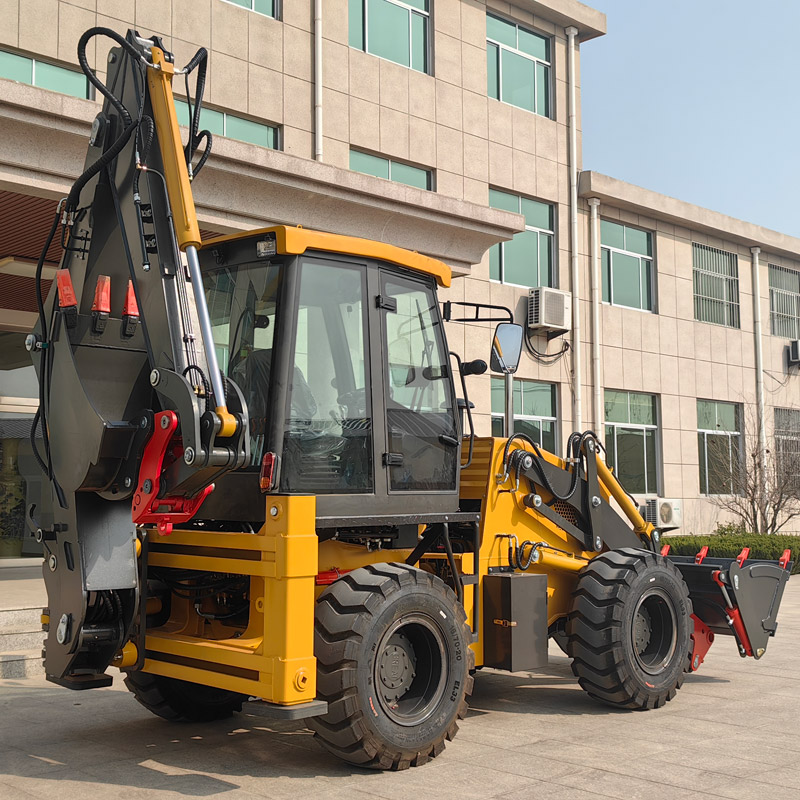

3.5T Backhoe Loader
Compact & Agile: Small turning radius, ideal for urban and narrow-area operations.
Dual-Function Efficiency: Combines loading and digging for increased productivity.
Attachment-Ready: Supports various tools via auxiliary oil circuits.
Operator Comfort: Includes LCD screen, ergonomic controls, and a shock-absorbing seat.
Fuel-Efficient: Equipped with a high-power, low-emission diesel engine.
Reliable & Durable: High chassis and solid build ensure stability across rough terrain.
Product Introduction
The 3.5-ton Backhoe Loader is a compact yet powerful machine engineered to meet the demands of urban construction, agriculture, landscaping, and small-to-medium infrastructure projects. With a tight turning radius and optimized design, it provides excellent maneuverability in confined areas. The backhoe arm supports precision digging and loading, while the front loader enhances overall versatility.
Equipped with user-friendly features such as an LCD display, electronic shifting, and a shock-absorbing seat, it delivers comfort and efficiency in every task. Its high ground clearance and rugged build enable stable performance on rough or uneven terrain. Designed for multifunctional use, this loader can easily switch between various tools and attachments, making it a reliable choice for any jobsite.
Product Specifications
ZLW20-15 | |
1. Overall dimensions | |
External dimensions (mm) | 4500*1550*2600 |
Minimum ground clearance (mm) | 260 |
2. Performance parameter | |
System pressure (Mpa) | 16 |
Overall weight (kg) | 3500 |
Maximum speed (km/h) | 25-35 |
Maximum Climbing Capacity (°) | 25 |
Minimum turning radius (mm) | 5330 |
3. Forklift parameters | |
Maximum lifting height (mm) | 3500-3900 |
Maximum unloading height (mm) | 2400-2800 |
Maximum load capacity (kg) | 1000 |
Bucket width (mm) | 1500 |
Bucket capacity (m3) | 0.5 |
4. Mining parameters | |
Excavation bucket capacity (mm) | 0.04 |
Excavation bucket width (mm) | 450 |
Boom length (mm) | 1823 |
Maximum excavation radius (mm) | 3920 |
Maximum excavation depth (mm) | 2140 |
Maximum excavation height (mm) | 3330 |
Excavation unloading height (mm) | 2440 |
Rotation speed (rpm) | 10 |
5. On the steering system | |
Type | Articulated full hydraulic steering |
Steering angle | 38 |
6. Engine | |
Model | Yunnei490 |
Rated power (KW | 37 |
Rated speed (r/min) | 2400 |
Number of cylinders - inner diameter | 4-90 |
7. Bridge | |
Type | Isuzu |
8. Tires | |
Specifications | 12-16.5 |
Service brake | Air top oil caliper disc brake |
Parking brake | Handbrake |
9. Others | |
Driving Type | Four wheel drive |
Variable speed type | Hydraulic variable speed |
Key Features
Dual Functionality: Equipped with both a front loader and a rear backhoe, enabling fast switching between digging, loading, trenching, and backfilling without changing equipment.
Compact & Powerful: Designed for narrow urban job sites with a powerful turbocharged diesel engine, deep-tread tires, and strong hydraulic systems for maximum performance.
Stable & Safe Operation: Features extendable outriggers and a balanced powertrain for increased stability during excavation and lifting tasks.
User-Friendly Design: Ergonomic cabin with electronic shifting, LCD display, shock-absorbing seat, and 360° operator swivel seat for easy switching between functions.
High Ground Clearance: Ensures excellent off-road mobility and the ability to work on uneven and rugged terrain.
Efficient Control System: Separated hydraulic valve systems for loading and digging prevent overlap operations, ensuring smooth and safe handling.
Application Scenarios
Urban Construction Projects: Ideal for road maintenance, utility installation, and infrastructure repair in limited space.
Agricultural Work: Perfect for trenching, leveling, and transporting materials on farms.
Landscaping & Site Preparation: Efficiently handles soil excavation, debris removal, and site grading.
Municipal Maintenance: Reliable for daily public works including drainage, piping, and curbside excavation tasks.
Why Choose Our 3.5-Ton Backhoe Loader?
Reliable Performance: Proven in challenging environments with excellent maneuverability and fuel efficiency.
Versatile Applications: One machine for multiple tasks—saves time, cost, and equipment space.
Customizable Options: Compatible with various attachments (buckets, breakers, augers) for different tasks.
After-Sales Support: Comprehensive service, spare parts availability, and expert technical assistance.
Trusted Manufacturer: Quality-certified production, backed by years of experience and global customer trust.
