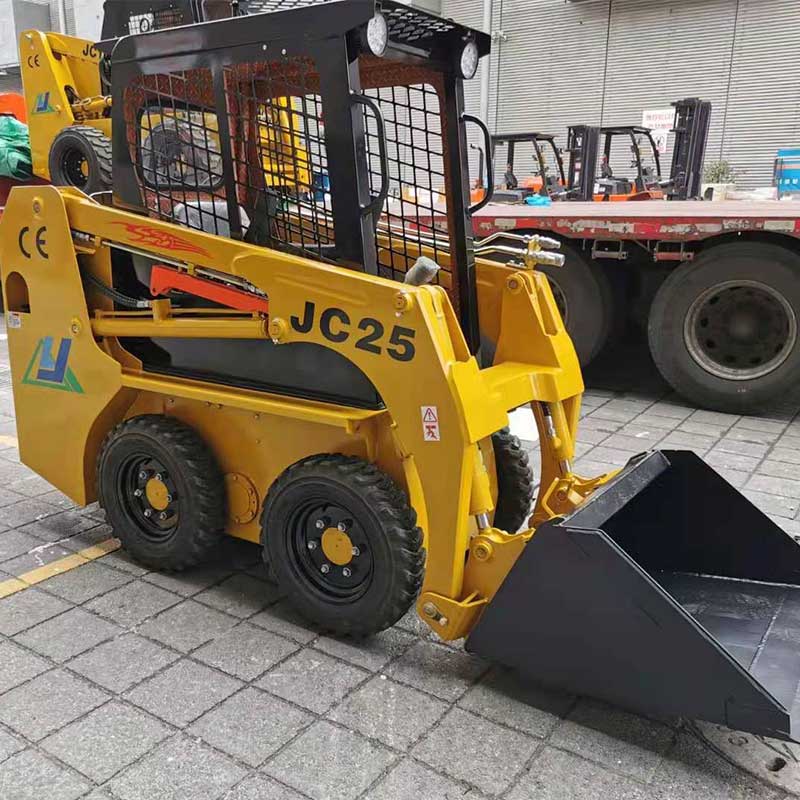

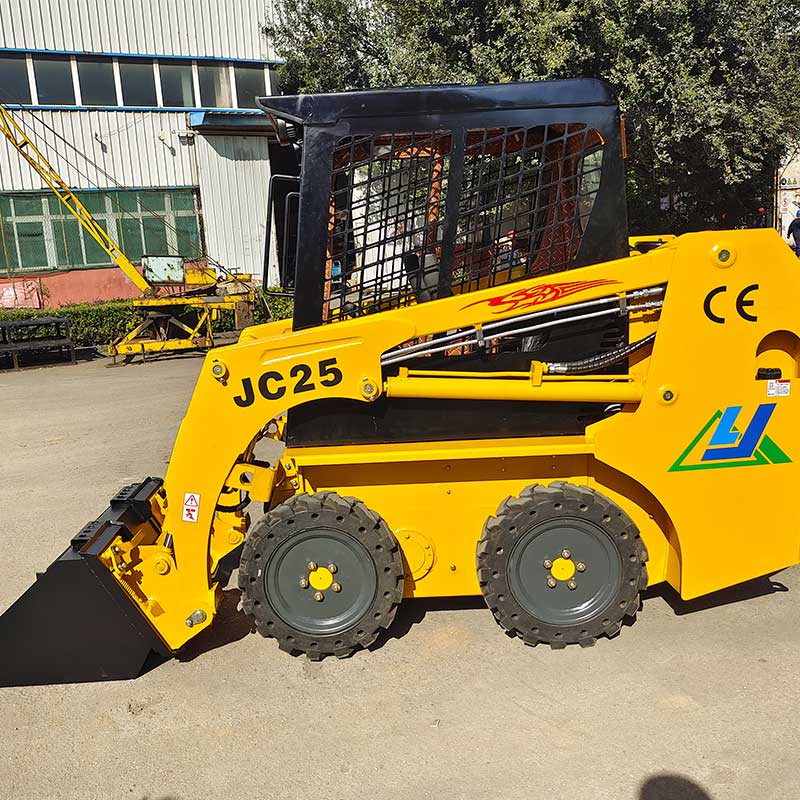

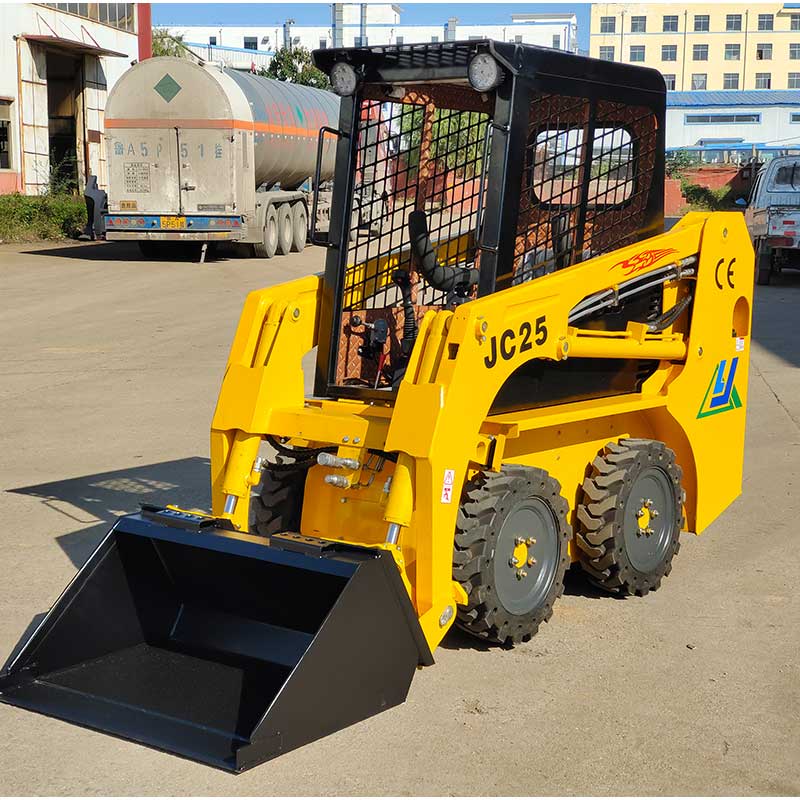

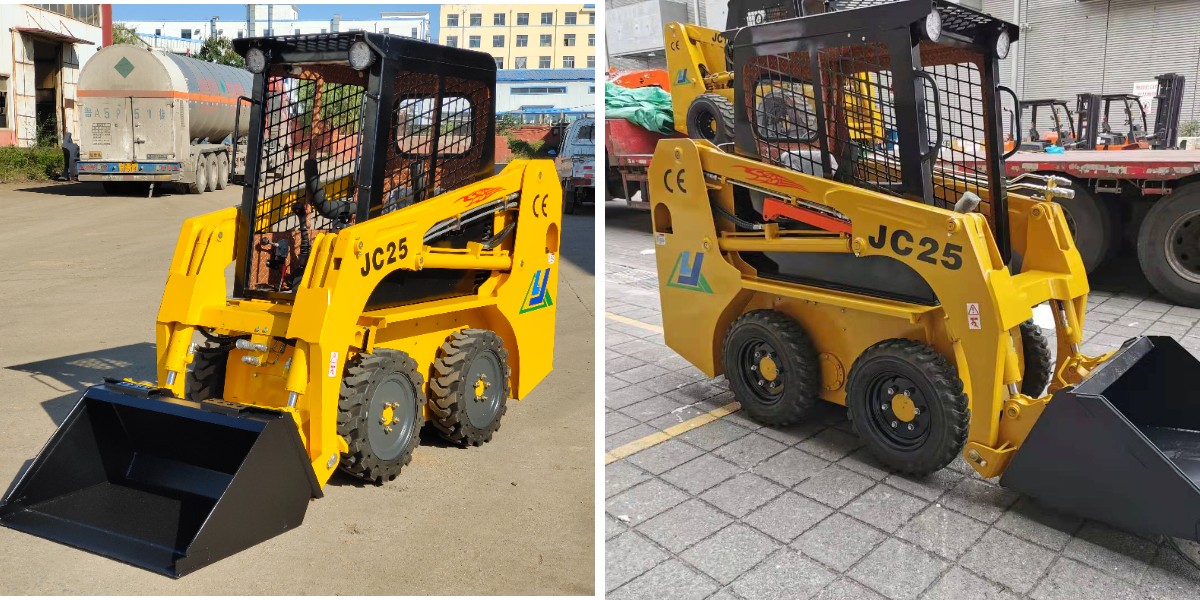

1 Ton Mini Skid Steer Loader
Skid-Steer: The left and right wheels are independently driven, which can achieve 360° steering on the spot, suitable for efficient operation in small spaces (such as warehouses, indoors, and narrow construction sites).
Compact size: The width of the whole machine is small, which can be flexibly moved in narrow passages or low environments (such as greenhouses and underground parking lots).
Quick-change interface: The standard hydraulic quick-change device can quickly switch different accessories (such as buckets, forklift arms, sweepers, hydraulic hammers, drilling machines, etc.) to meet various operation needs.
Product Overview
1. It is widely used for lifting, clearing works, loading, broom, breaking and so on And it can be used in these places. For example: farms, pasture, feed factory, family and factory;
2. The more non -slip of the track is suitable for complex pavement;3. This machine is competent for the work in narrow place and saves a lot of labor. Easy maintenance, up per cover can be open totally;4. Long life, adopting high-strength chain to drive machine, the hydraulic motor transmits the power to the wheels through two ingenious designed chains on both sides, it is very easy to adjust and maintain outside, thus can guarantee transmission efficiency of the chains and more long-term service life;
5. Secure and tracking service Operating environment Small volume, light weight, small in turning radius, multi-usages.
Product Details
Brand Engine：Strong power, guaranteed quality, low consumption and fuel efficiency
Hydraulic System：Improve mechanical stability and reliability Can also be optional three pumps three valves,suitable for large flow equipment

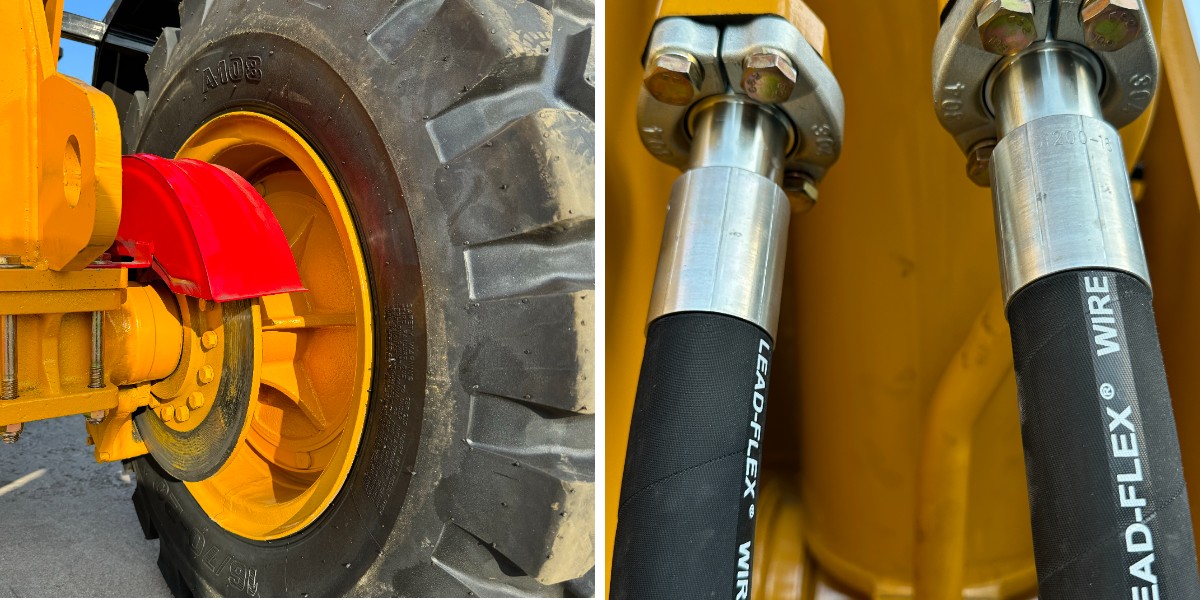

Wear resistant tires/tracks：Reinforced wear-resistant engineering special track strong grip, no damage to the ground, not afraid of harsh environment
Multi-function console：Thickened hydraulic tubing, strong sealing, no oil leakage, stable and stable lifting operation superor perfomance
Technical Parameters
Operatingload (kg) | 1000 |
| Max Speed(kmh) | 9 |
| Rated flux (/min) | 37 |
| Tire(track) model | 5.7-12 |
| Rated power (Kw) | 18.7(Yanmar/Perkins/Kubota） |
| Fuel tank capacity (L) | 28 |
| selfweightbucket (kg) | 1300 |
| Bucket capacity (m*) | 0.19 |
| Dumping angle at maximmum height(°) | 40 |
| Wheelbase(mm) | 801 |
| Dumping height(mm) | 1933 |
| Dumping reach(mm) | 441 |
| Tread widt(mm) | 785 |
