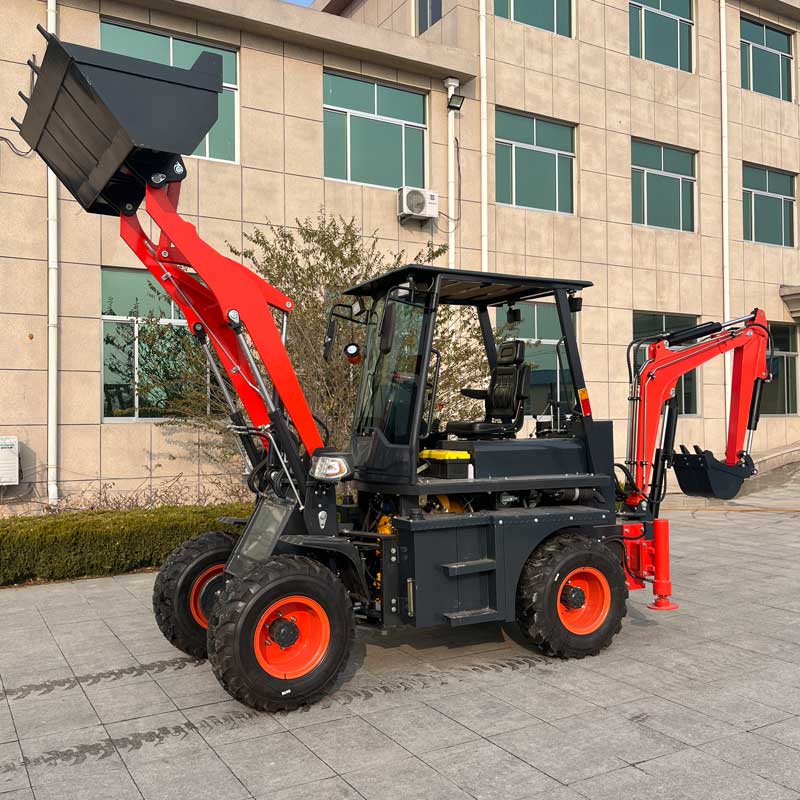

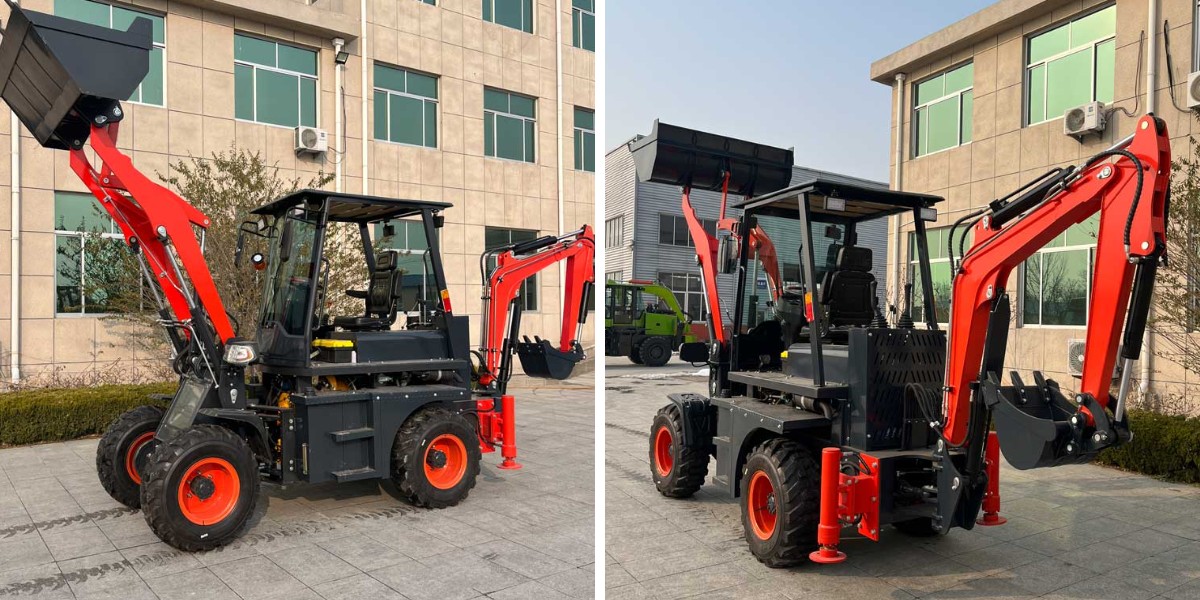

Excavator Front End Loader
Reduce device idleness: One machine can work continuously, avoiding the situation where another device is idle due to task switching.
Reduce equipment dispatch time: Avoid the time-consuming and coordination trouble of frequently dispatching different equipment in and out of the site.
Strong adaptability: It can connect dozens of accessories with different functions to cope with various complex working conditions.
Excavator Front End Loader Description
The backhoe loader is a cleverly designed, powerful, and extremely practical piece of construction machinery. It seamlessly combines the maneuverability of a wheeled tractor, the handling capacity of a front-end loader, and the digging power of a backhoe. Its versatility, flexibility, and relatively high cost-effectiveness make it an indispensable all-rounder for a wide range of small and medium-sized construction projects worldwide.
Excavator Front End Loader Details

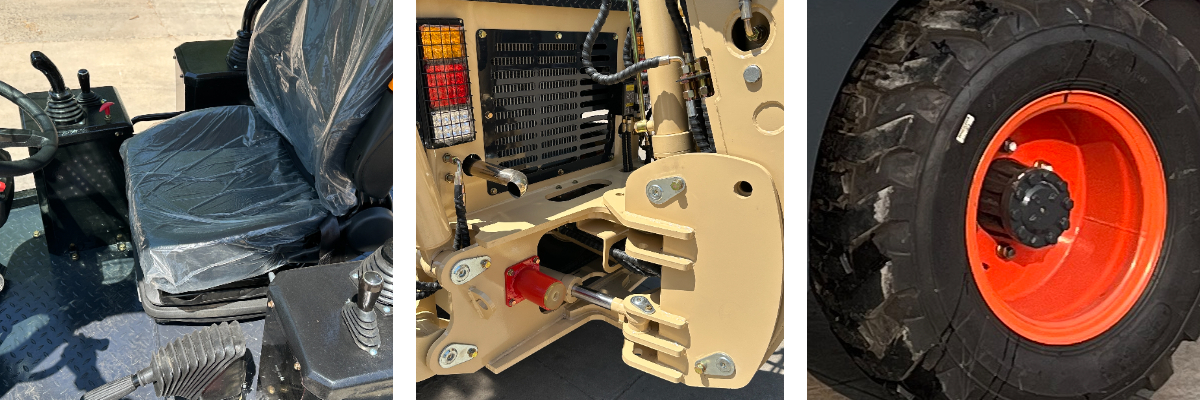

GOOD ENGINE ：Sufficient power and high efficiency 30% power can be excavated

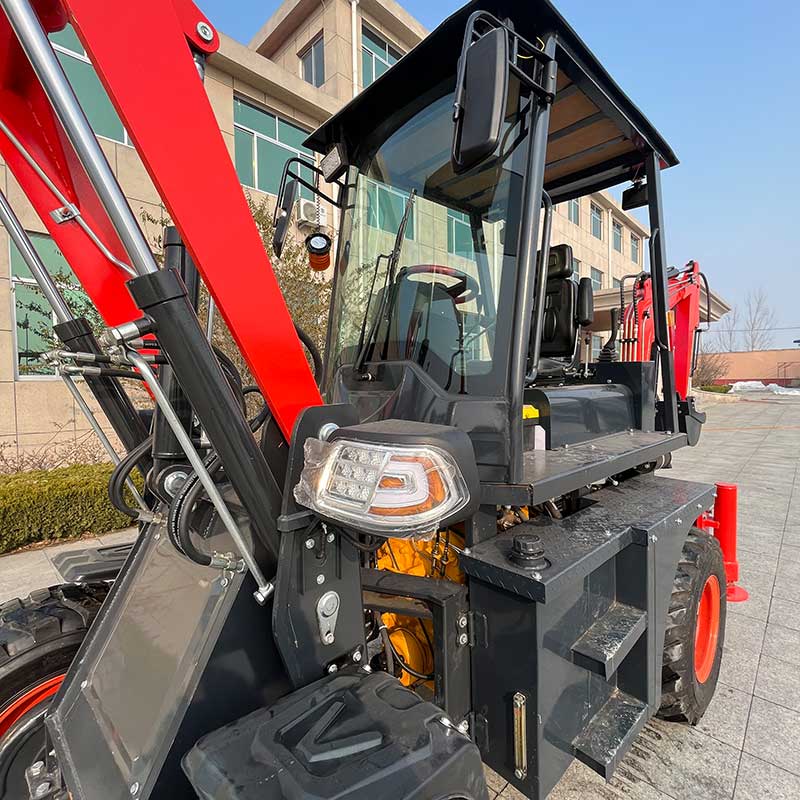

SWIVEL SEAT ：Rotate at any time wide field of view

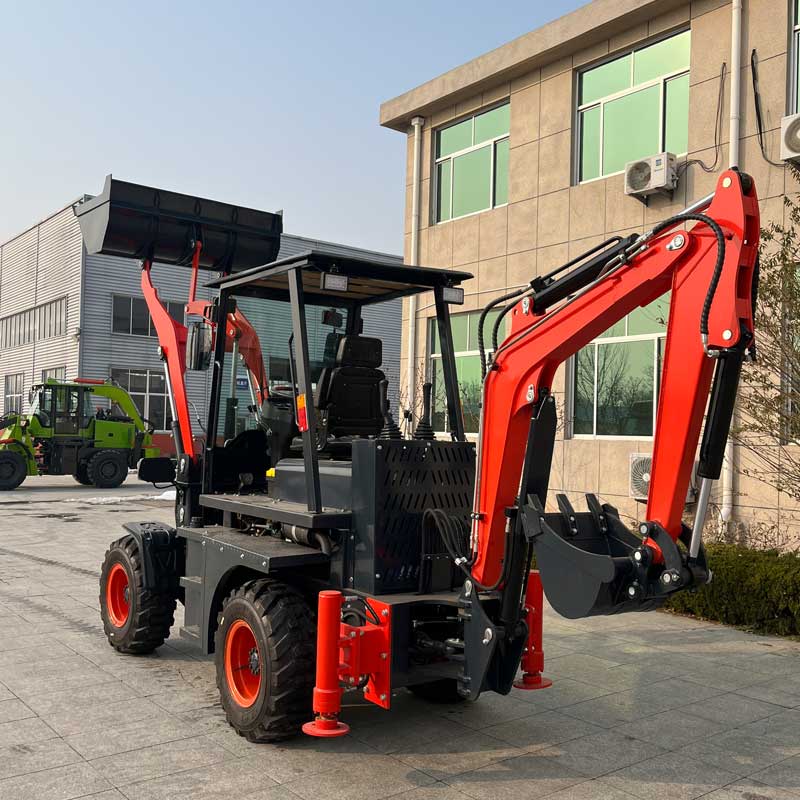

FOLDING SIDE DIG：Slideway form, free to slide
OTR TIRES：Strong wear resistance and good safety performance
| External dimensions (mm) | 4500*1550*2600 |
| Minimum ground clearance (mm) | 260 |
| System pressure (Mpa) | 16 |
| Overall weight (kg) | 3500 |
| Maximum speed (km/h) | 25-35 |
| Maximum Climbing Capacity (°) | 25 |
| Minimum turning radius (mm) | 5330 |
| Maximum lifting height (mm) | 3500-3900 |
| Maximum unloading height (mm) | 2400-2800 |
| Maximum load capacity (kg) | 1000 |
| Bucket width (mm) | 1500 |
| Bucket capacity (m3) | 0.5 |
| Excavation bucket capacity (mm) | 0.04 |
| Excavation bucket width (mm) | 450 |
| Boom length (mm) | 1823 |
| Maximum excavation radius (mm) | 3920 |
| Maximum excavation depth (mm) | 2140 |
| Maximum excavation height (mm) | 3330 |
| Excavation unloading height (mm) | 2440 |
| Rotation speed (rpm) | 10 |
| model | Yunnei490 |
| Rated power (KW） | 37 |
| Rated speed (r/min) | 2400 |
| Number of cylinders - inner diameter | 4-90 |
| type | Isuzu |
FAQ
1. Why choose us?
As a manufacturer, we are committed not only to providing high-quality products and performance at competitive prices, but also to providing timely delivery and comprehensive 24/7 after-sales service.
2. What is our product range?
We are a large-scale machinery manufacturing enterprise, primarily engaged in the supply of loaders, forklifts, and related accessories. We can also customize non-standard products according to customer requirements.
3. What payment terms do we accept?
A 30% deposit is usually required in advance, and the 70% balance should be settled before shipment. A 100% irrevocable letter of credit at sight with agreed terms is also acceptable.
4. What certificates do we have?
All products comply with the ISO9001 quality system and have obtained the CE certificate. EPA approval will be obtained if required.
5. What is our delivery time?
Usually, it takes 15 to 30 days after receiving your deposit. We always have standard products in stock and can deliver immediately. However, customized products will take more time, depending on your order requirements.
6. Can we provide OEM services?
We can provide customized products according to customer requirements. Both OEM and ODM are acceptable.
