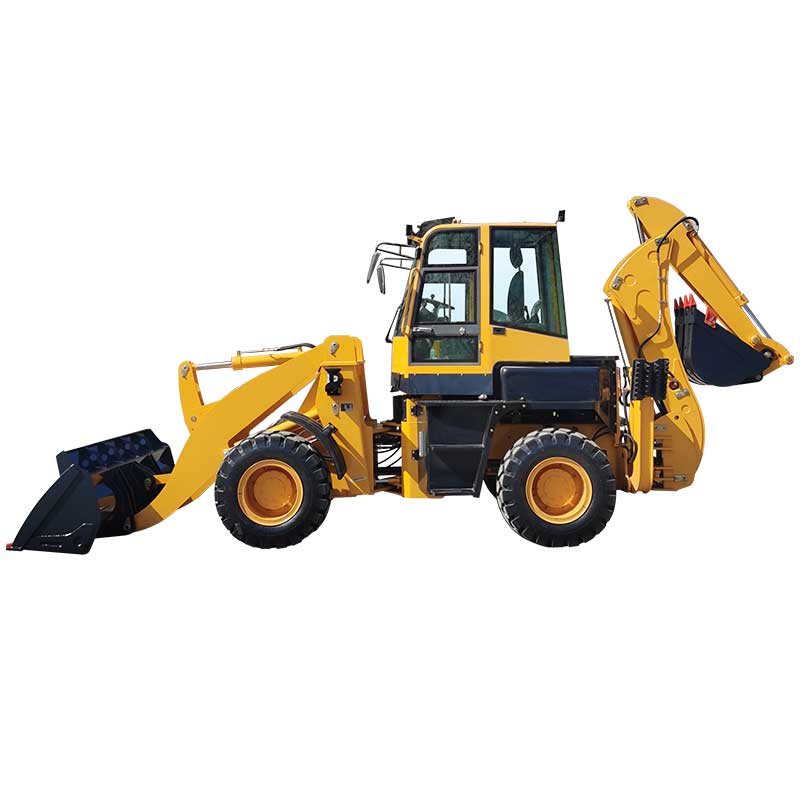

Small Backhoe Loader
1,Variable hydraulic system is adopted in which oil flow is supplied to demand, for less power loss and higher efficiency.
2,Ergo-power electric control gearbox enables smooth and comfortable shifting.
3,The cooling fan with temperature control is driven by a hydraulic motor. Reversal rotation available to extrude dust.
4,Centralized hydraulic pressure measuring points for easy checks and troubleshooting.
Product Description
Experience the versatility with its powerful digging force and efficient loading capacity. Featuring a robust hydraulic system, comfortable operator cabin, and easy-to-use controls, this loader and excavator maximizes productivity. Its durable construction ensures long-lasting performance for demanding jobsites.
Features
1,Articulated Stucture and Air Service Brake: Articulated Structure make the track of rear wheels of the backhoe loader coincide with the track of its front wheels when turning to make the turning radius short, which enables it to work on a narrow site.
2.The Service Brake of this backhoe loader adopts air brake,which is more stable and light than normal oil brake:The Thickened and Heavy-duty Frame
The thickness of articulated section and front frame is 50 mm.
The thickness of lifting arm is 30 mm and the thickness of counter weight plate is 10 mm.
All these four important parts have been thickened and are much stronger.
3,Various Kinds of Attachments are optional
This backhoe loader can be equipped with optional quick hitch , and this quick hitch enables this backhoe loader to change quickly among multiple attachments, such as four-in-one bucket, two-in-one bucket, grass fork, wood fork, pallet fork, V-shaped snow plow and snow bucket etc.
Technical Parameters
| Length x Width x Height | 7400 x 2260 x3300 mm |
| Operating Weight | 7200KG |
| Max. Speed | 30 Km/h |
| Max. Grade ability Capacity | 25° |
| Wheel Base | 2650 mm |
| Track | 2050 mm |
| Min. Ground Clearance | 320 mm |
| Loading Bucket Capacity | 1.2 CBM |
| Rated Loading Capacity | 2500 KG |
| Max. Raise Height | 4500 mm |
| Max. Discharge Height | 3500 mm |
| Max.Discharge Distance | 1000 mm |
| Backhoe Bucket Capacity | 0.3 CBM |
| Max. Digging Depth | 4050 mm |
| Max. Digging Height | 5000 mm |
| Max. Digging Radius | 4600 mm |
| Boom Slewing Angle | 190 ° |
Diesel Engine Model | YUNNEI |
| Engine Power | 92Kw |
| Transmission System Model | Fixed shaft power shift transmission |
| Gear Shift | 2 forward 2 reverse |
