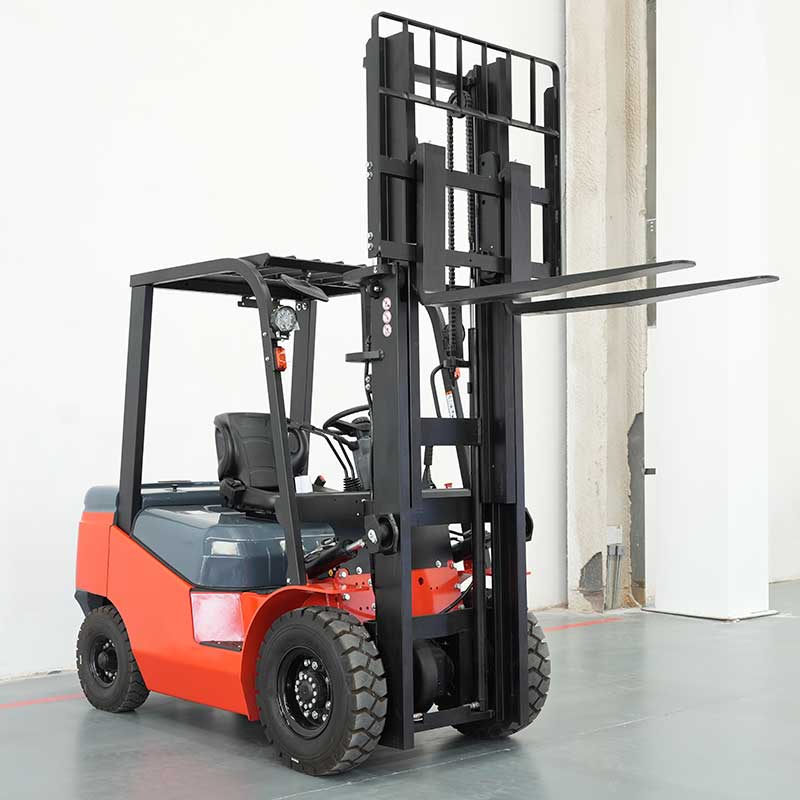

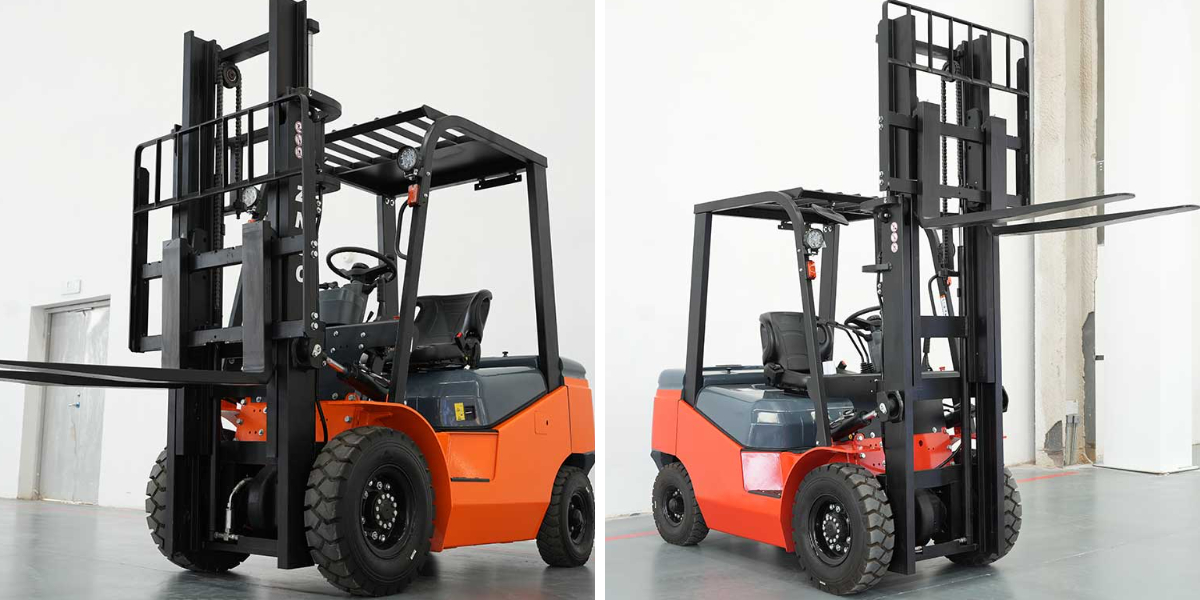

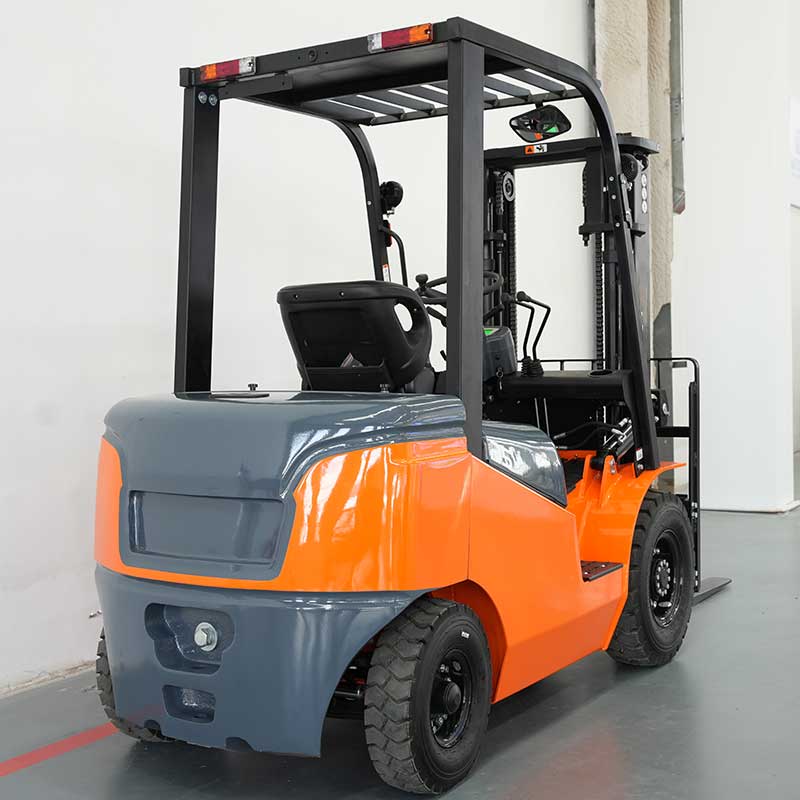

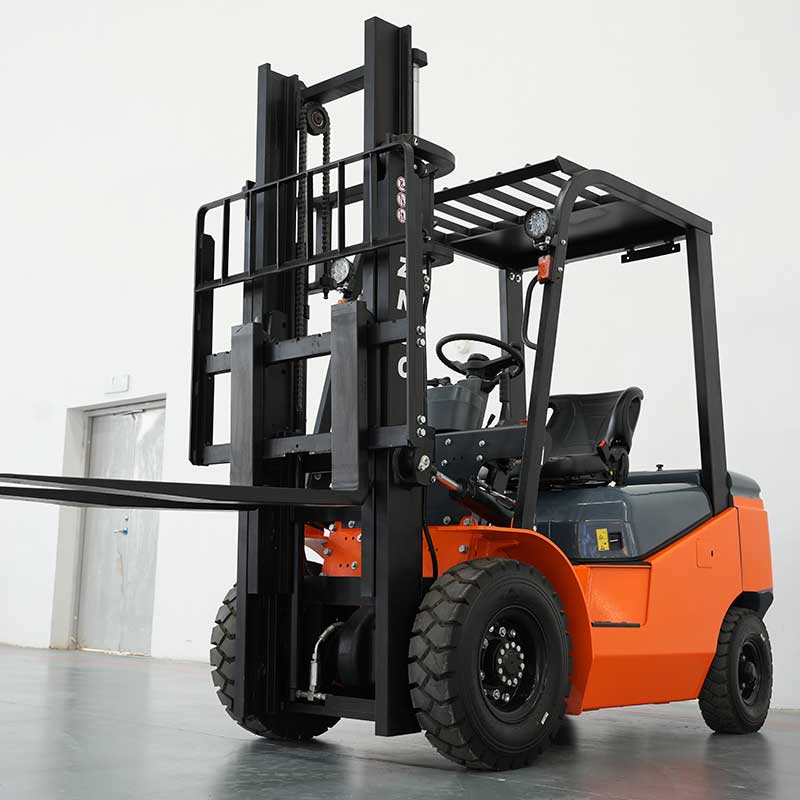

2.5T Electric Forklift Truck
Improve working comfort: Reduce operator fatigue, make the working environment more comfortable, and reduce the impact of noise on the surrounding environment.
Simple structure: The structure of an electric motor is much simpler than that of an internal combustion engine, with fewer moving parts and fewer failure points.
Extended component life: Electric systems generally experience less wear than internal combustion systems under the same operating conditions.
2.5T Electric Forklift Truck Describe
Electric forklift truck, also known as electric forklift or battery forklift, is an industrial vehicle that uses batteries as power source and uses electric motors to drive the travel system, hydraulic system (lifting, tilting) and working device (gantry, fork) to complete material handling and stacking operations.
2.5T Electric Forklift Truck Features

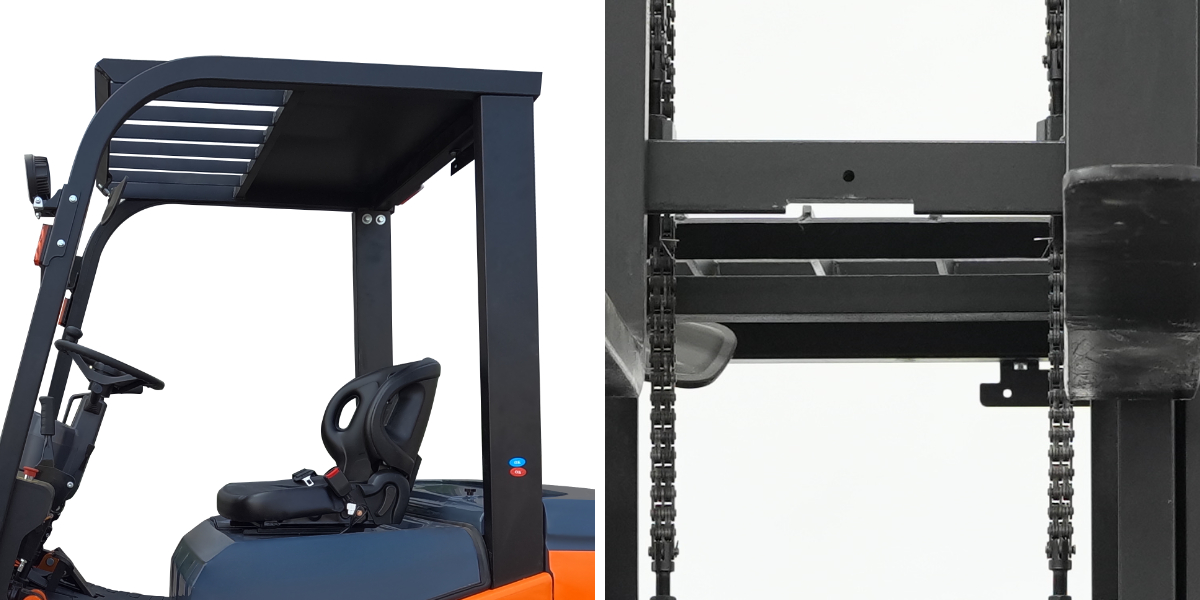

WIDENED GANTRY WIDER FIELD OF VIEW: drivers have a wider field of vision and operate more efficiently
STANDARD LARGE CAPACITY BATTERY PACK ：60V7OAH 10 maintenance free lead-acid dry battery optional larger capacity battery pac
COMPOSITE PLATE CHAIN :stronger carrying capacity smoother transmission
2.5T Electric Forklift Truck Technical Parameters
| Rated lifting capacity | 2500 |
| Load center distance | 500 |
| Maximum lifting height | 3000 |
| Free lifting height | 145 |
| Front/Rear Mast Angle | 6°/10° |
| Maximum Lifting Speed (No Load/Full Load) | 400/280 |
| Maximum Travel Speed (Empty/Full Load) | 14/12 |
| Maximum Gradeability (Empty/Fully Loaded) | 20/15 |
| Minimum Turning Radius | 2390 |
| Weight (Including Battery) | 3800 |
| Wheelbase | 1660 |
| Front/Rear Overhang | 475/510 |
| Length Without Forks | 2645 |
| Front Wheel Width Outside | 1174 |
| Mast Height Without Lift | 2060 |
| Overhead Guardrail Height | 2170 |
| Battery rated voltage | 80 |
| Battery capacity | 280 |
| Travel motor rated power | 10 |
| Oil pump motor rated power | 12 |
| Hydraulic system operating pressure | 17.5 |
Application
Port terminal container yard: More and more ports are beginning to use large electric container reach stackers and empty container handlers to stack and transport containers horizontally to reduce pollution and noise in the port area.
Warehouses and distribution centers: used for loading, unloading, handling, stacking, and picking of goods. Zero emissions ensure indoor air quality, and low noise improves the working environment, making it particularly suitable for intensive operations.
Supermarkets and retail distribution centers: used for handling goods within warehouses and loading and unloading for delivery to stores.
FAQ
Q1: How do your prices compare to other factories?
A: We are a professional forklift manufacturer and can definitely offer you more competitive prices than other factories.
Q2: What are your delivery times?
A: Typically, we can deliver standard machines to customers within 30 days. Because we have common parts in stock, we can deliver standard forklifts within a very short time. For certain special order requirements, we can also try to deliver to you on a confirmed date.
Q3: How long does it take you to respond to customer inquiries?
A: Our team consists of a group of hardworking and energetic people who work around the clock to respond to customer inquiries and questions.
Q4: Can you provide OEM services?
A:Customized products are available upon customer request.
