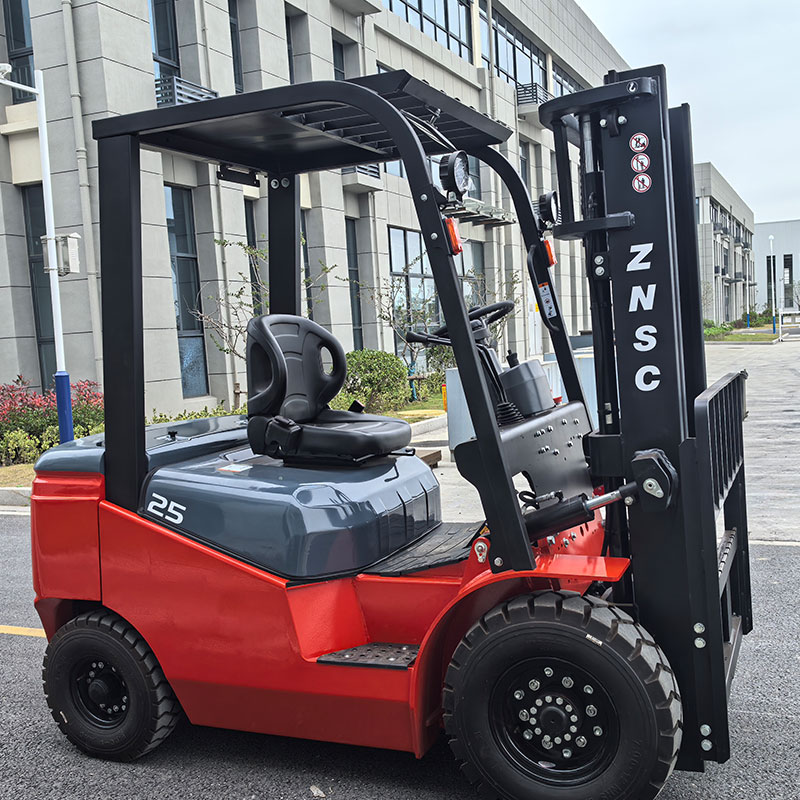

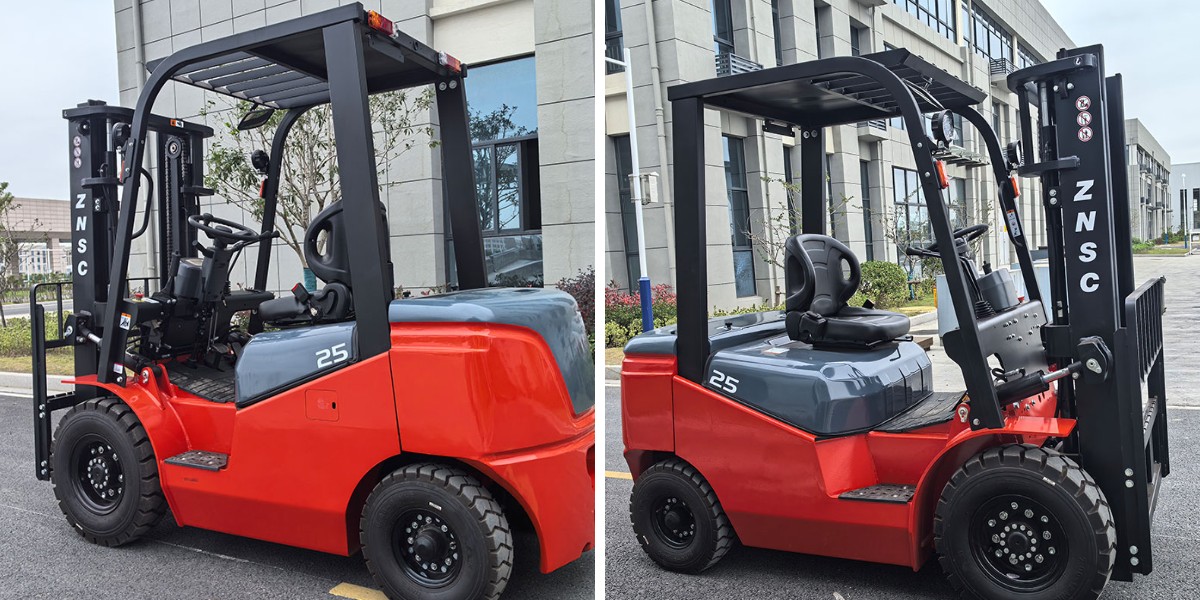

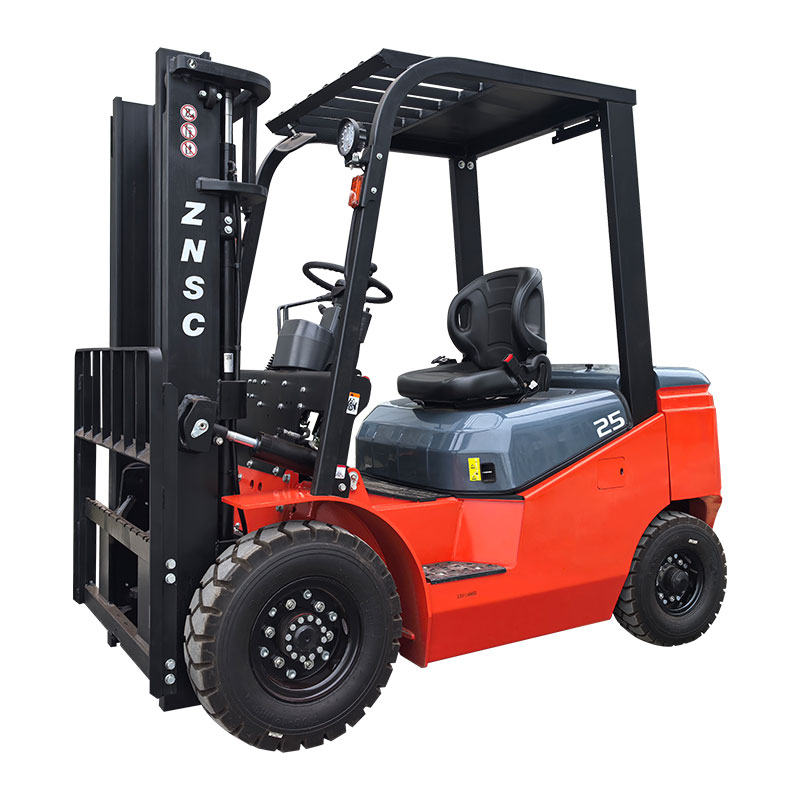

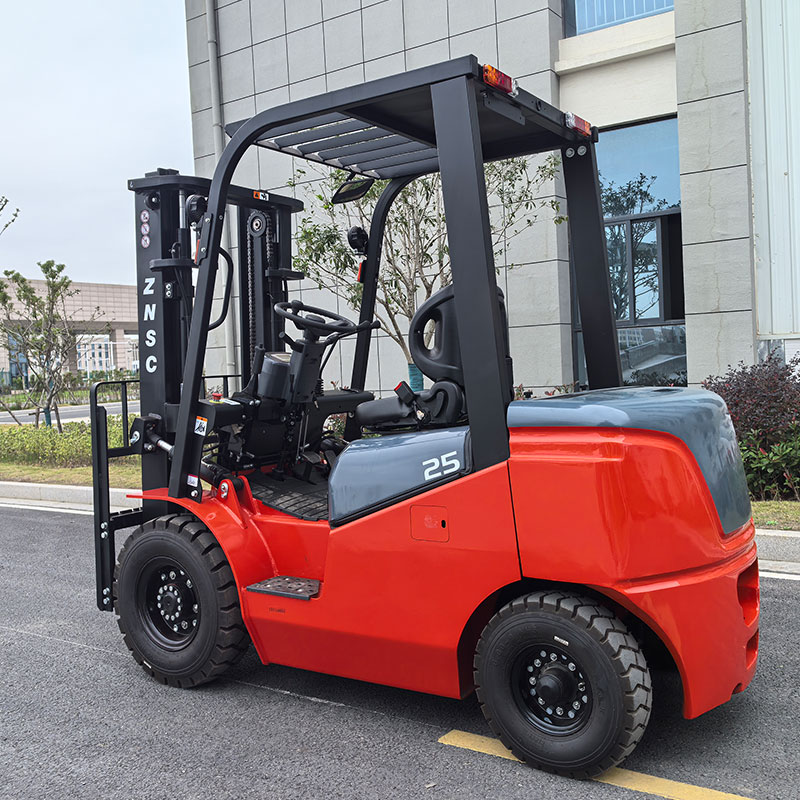

2.5 Ton Industrial Electric Forklift
Environmentally friendly and pollution-free: It is completely powered by electricity, has no exhaust emissions, and is suitable for indoor operations. The motor operation noise is significantly lower than that of internal combustion forklifts, which reduces noise pollution and is suitable for scenes with high requirements for quietness.
Low operating cost: The electricity bill is much lower than the cost of diesel or gasoline, and long-term use can significantly reduce energy consumption.
Low maintenance cost: Electric forklifts have a simple structure and do not require replacement of internal combustion engine-related consumables such as engine oil and filter elements.
Product Features:
2.5tons electric forklift trucks are widely used for loading, unloading and transporting the packaged goods in the factories, warehouses, stations, docks, ports and other places. Because of the characteristics of the forklift truck with low noise, flexible operation, no pollution, no smell, electric forklift trucks are particularly suitable for tobacco, textile, food, printing and other industries.
Technical Parameters
Rated lifting capacity | kg | 2500 |
Load center distance |
mm | 500 |
Maximum lifting height | 3000 | |
Free lifting height | 145 | |
| Front mast inclination angle | ° | 6° |
Rear mast inclination angle | 10° | |
Maximum lifting speed when empty | mm/s | 400 |
| Maximum lifting speed when fully loaded | 280 | |
Maximum driving speed without load | km/h | 14 |
Maximum driving speed with load | 12 | |
| Maximum climbing grade (empty/full load) | ％ | 20/15 |
| Minimum turning radius | mm | 2390 |
| Weight (including battery) | kg | 3800 |
Battery rated voltage | V | 80 |
Battery capacity | Ah | 280 |
Travel motor rated power | Kw | 10 |
| Oil pump motor rated power | Kw | 12 |

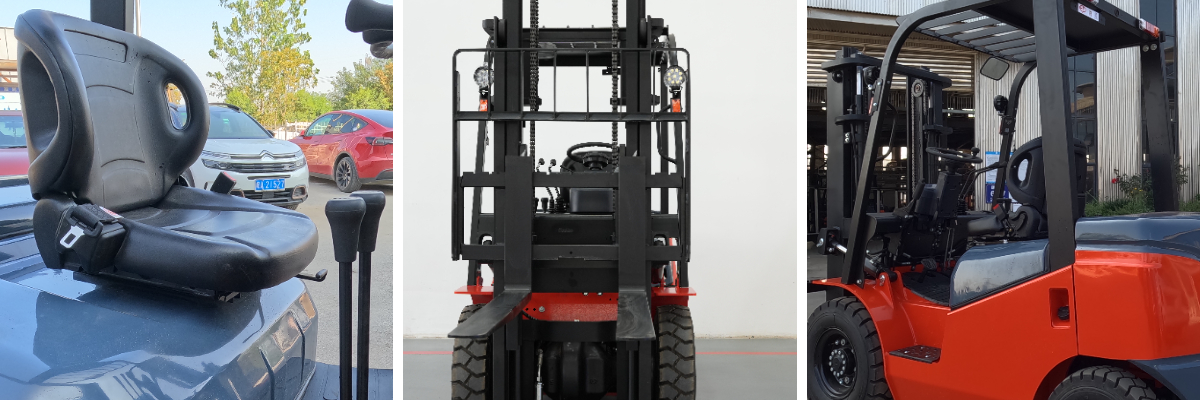

2.5 Ton Industrial Electric Forklift Product Details
1，load capacity of 1500kg-3500kg, stable and economic.
2，High-Strength Overhead Guard
3，Full-AC controller
4，Famouse Brand Hydraulic Oil
5，Wide view Mast
6，Famous brand battery and charger
7，Reasonable structure,better heat dissipation for controller
8，Powerful AC driving motor applied to reduce maintenance cost and increase the overall performance.
