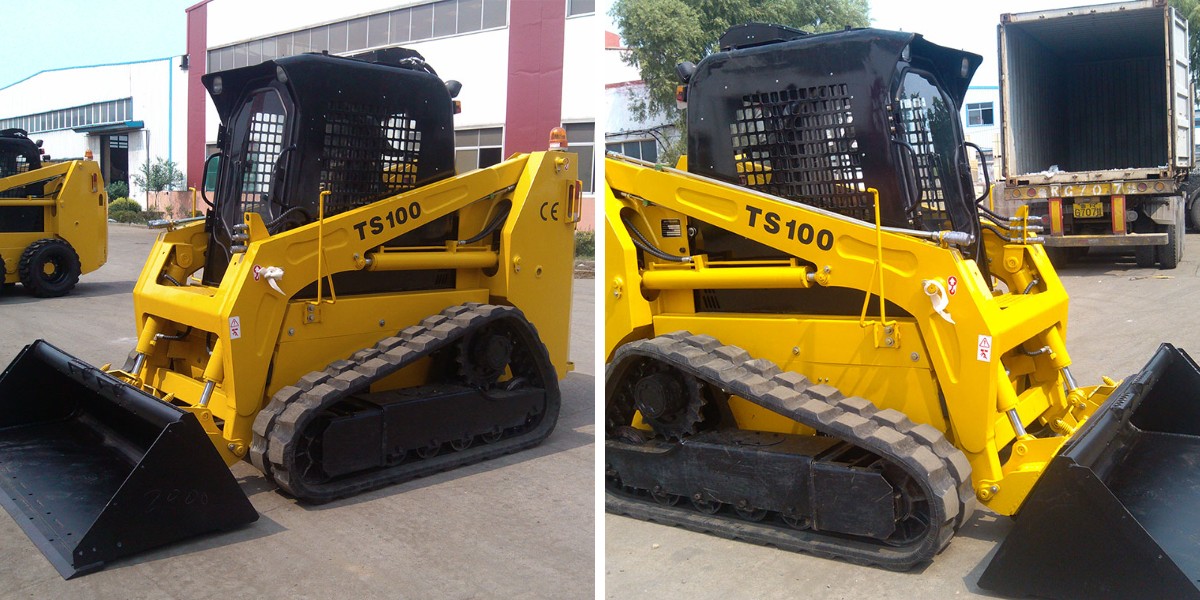

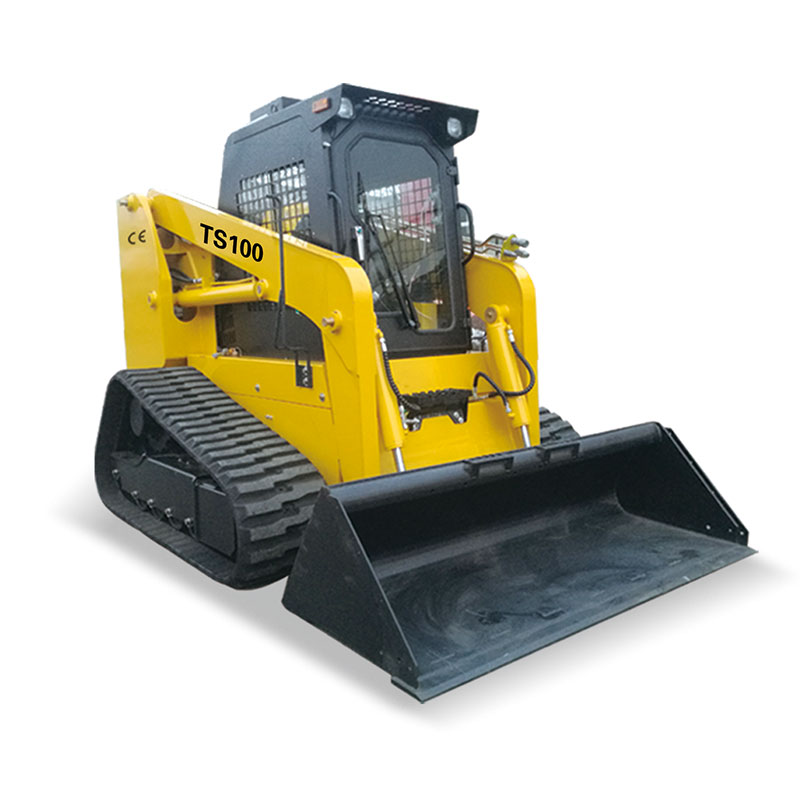

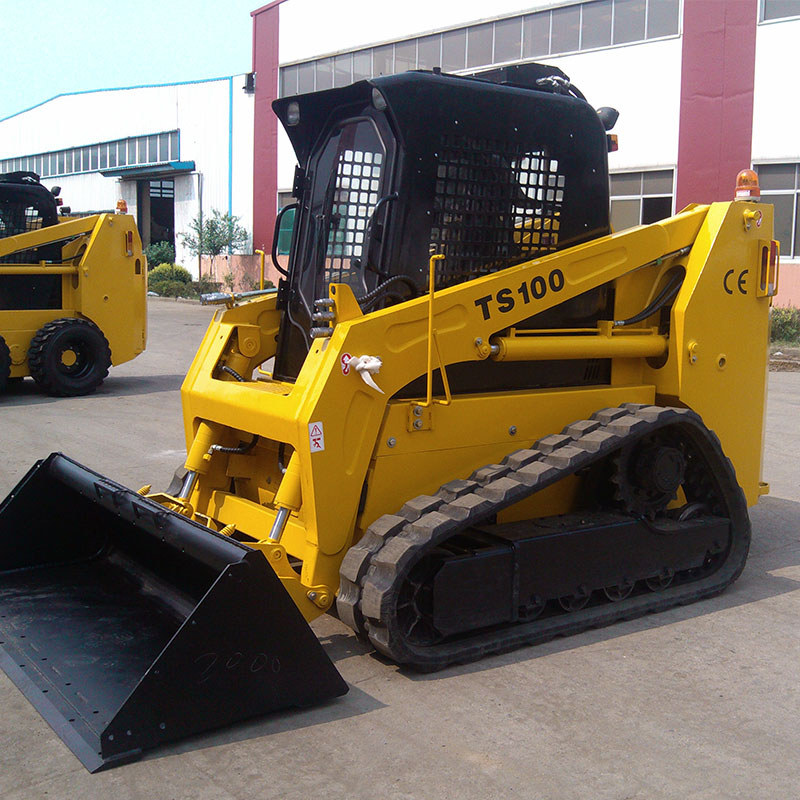

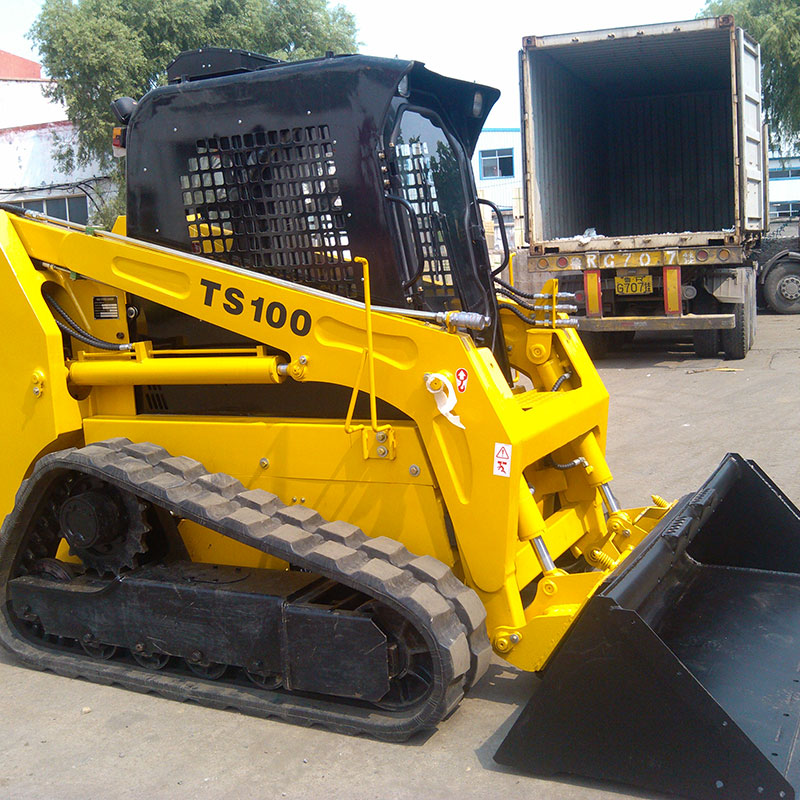

Mini Track Skid Steer
Unparalleled maneuverability: Zero turning radius, the king of narrow space operations.
Excellent ground adaptability: The traction and passability on harsh, soft and uneven terrain far exceed those of wheeled equipment.
Low ground pressure ratio: Reduce damage to fragile ground.
Versatility: By replacing accessories, one host can complete dozens or even hundreds of different tasks
Compact size: The relatively small body size is easy to transport and work in confined spaces.
Easy to operate: The dual handle control is relatively easy to learn
Product Description
Crawler skid steer loader is a small, highly flexible and multifunctional construction machine that combines the core control characteristics of skid steering with the advantages of crawler travel device. Skid steering: This is its most core feature. Through the independent drive and differential of the left and right crawler tracks/wheels, the machine can achieve "zero turning radius". This means that it can rotate 360 degrees on the spot, flexibly shuttle and operate in extremely narrow spaces, and its mobility is unmatched by traditional wheel loaders.
Product Features:
1. The renowned brand engine equipped features strong power, ultra-low emission, and higher fuel efficiency. It provides the skid steer loader powerful enough to travel on rough roads. Whether in mud or on hard slopes, the combination of power and a long wheelbase gives greater stability and a smoother ride, so you're ready to tackle any task.
2. Safe and Comfortable Operating
Environment Easy maintenance, less downtime The ROPS&FOPS cab and the seat belt, bumper, fire extinguisher, and safety hammer equipped guarantee the personal safety of the operator. The cab features large space, adjustable seats, and comfortable operations. The joysticks and the instrument panel are arranged in accordance with ergonomic principles so that the driver can always maintain the best comfort to make operations easier. The standard double-accelerator control model means that you can use the pedal accelerator or work at preset constant power to save the operation labor.
3. Easy maintenance, less downtime:
Maximizing uptime gives you the edge when it comes to productivity. Our skid-steer loader is applied with sprocket case of integral structure design and standard high-strength maintenance-free chain. During the use of this product, no secondary tension is required to reduce the user’s downtime due to periodical adjustment of chain.
Technical Parameters
| Rated operating capacity (kg) | 1200 |
| Tipping load (kg) | 2400 |
| Bucket capacity (m3) | 0.6-0.7 |
| Operating weight (kg) | 4500 |
| Maximum travel speed (km/h) | 10/20 |
| Hydraulic pump flow (l/min) | 75/140 |
| Oil tank capacity (l) | 85 |
| Overall dimensions (mm) | 3385 × 1850 × 2025 |
| Height of bucket hinge pin (mm) | 2920 |
| Width with bucket (mm) | 1850 |
| Track width (mm) | 320 |
| Track length with ground (mm) | 1500 |
| Ground clearance (mm) | 200 |

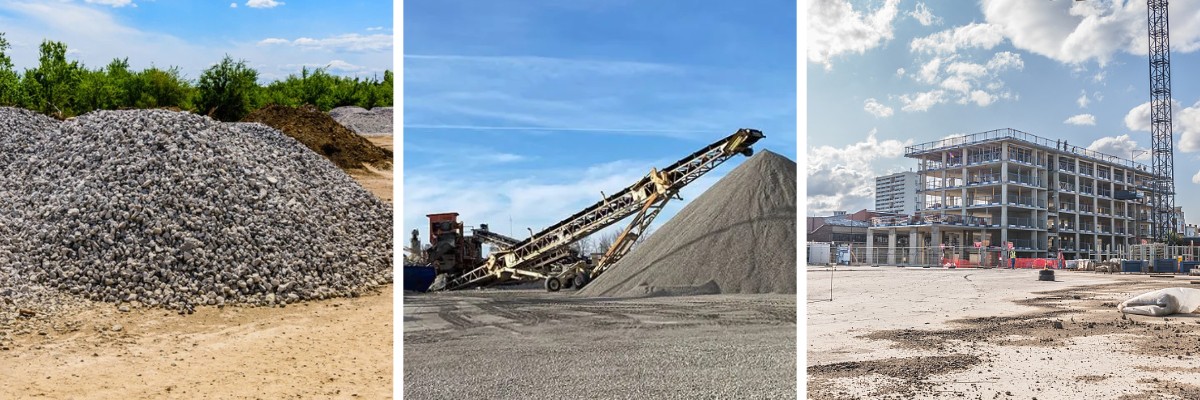

Application Industry
Construction sites: clearing rubble, gravel, weeds, and small earthwork leveling.
Material handling: loading and unloading sand, bricks, building materials, etc., especially suitable for narrow spaces
Stone processing: use hydraulic hammer to break small rocks, or use bucket to transport gravel.
