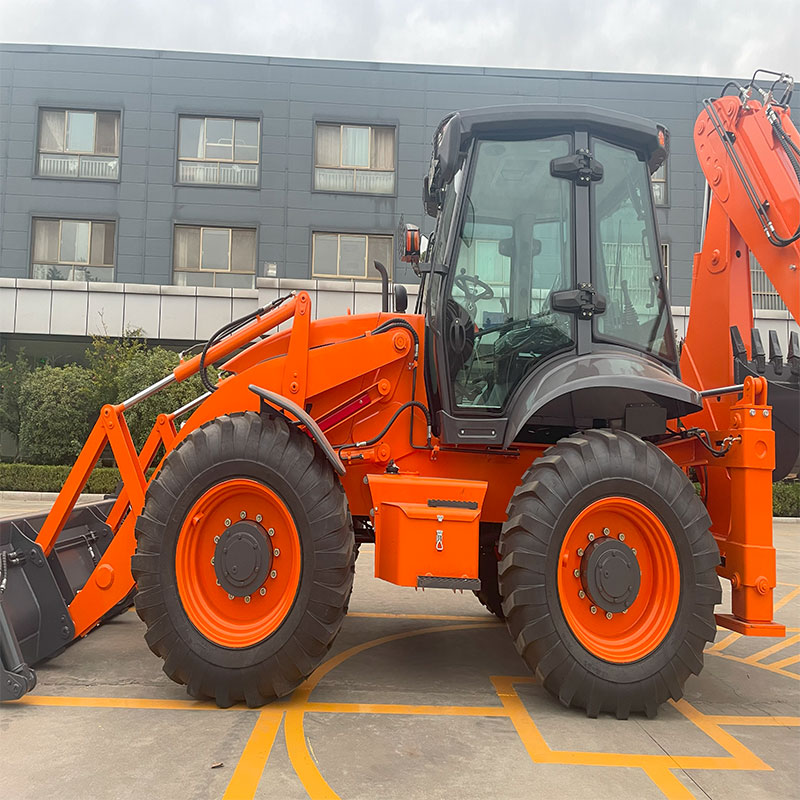

2.5T Tractor Loader With Backhoe
One machine with two functions, powerful functions: The biggest advantage is that it integrates loading and excavation functions in one, without the need to frequently change equipment, which greatly improves equipment utilization and operating efficiency.
Space saving: The storage and operating space requirements are relatively low.
Improve efficiency: Reduce equipment waiting and dispatch time, especially suitable for construction sites with diverse tasks and limited space.
Flexible and maneuverable: Quick transfer and adapt to narrow spaces.
Product Description
1，Hydraulic joystick control forward, backward easier operation.
2，Well-designed quick hitch can be used for changing different attachments.
3，Different color can be painted: red, green, blue, yellow as u like

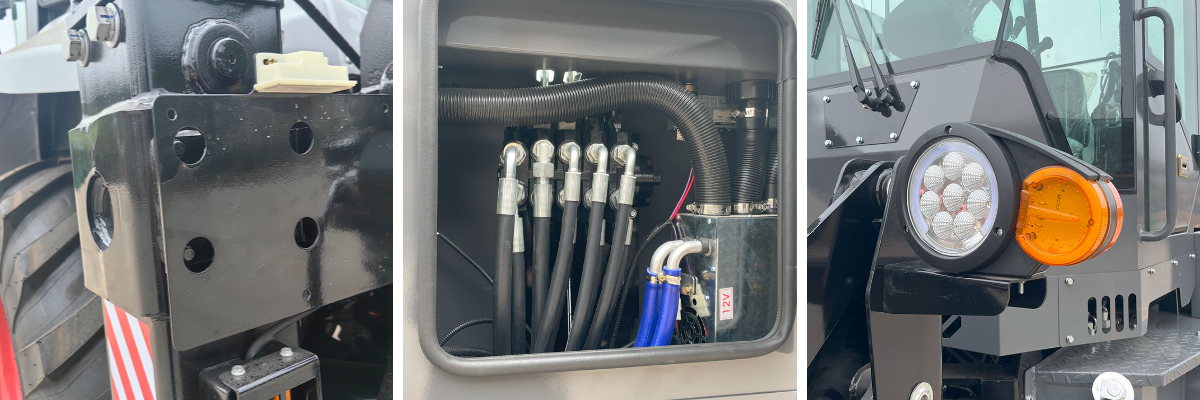

Product Details
Heavy-duty axles have more reliable quality and stronger working capacity.
The back-turning cabin is convenient for maintenance,inspection and repair of the engine.
The whole loader adopts LED lights,which makes the work clearer and safer at night.
Technical Parameters
| Rated Load | 2500 |
| Bucket Capacity | 1.2 |
| Operating Weight | 10200 |
| Dumping Height | 3120 |
| Dumping Distance | 870 |
| Transmission model | 315Y |
| Transmission mode | hydraulic torque converte |
| Low /High gear | 5/35 |
| Maximum steering angle | ±18° |
| Length ×Width ×Height | 6400× 2500× 3080 |
| Bucket width | 2460 |
| Wheelbase | 2350 |
| Track width | 2030 |
| Minimum ground clearance | 380 |
| Engine model | 4105 supercharged |
| Engine manufacturer | Weichai |
| Rated power | 70 |
| Rated speed | 2200 |
| Parking brake | handbrake caliper disc type |
| Max.digging depth | 3510 |
| Max.digging radius | 5565 |
| Max.dumping height | 3725 |
| Max.digging height | 5370 |
| Max.digging radius lifting capacity | 1220 |

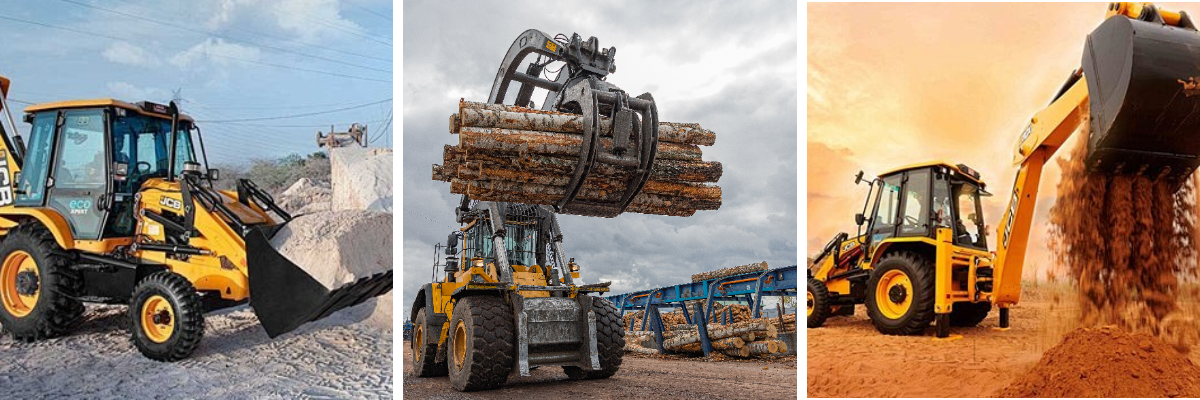

Application Industry
Construction: earth excavation, material handling, foundation backfilling, concrete mixing plant material loading and unloading.
Agriculture and animal husbandry: feed handling, manure cleaning, farmland leveling, ditch excavation.
Mining and quarrying: small pit mining, ore loading, site cleaning.
