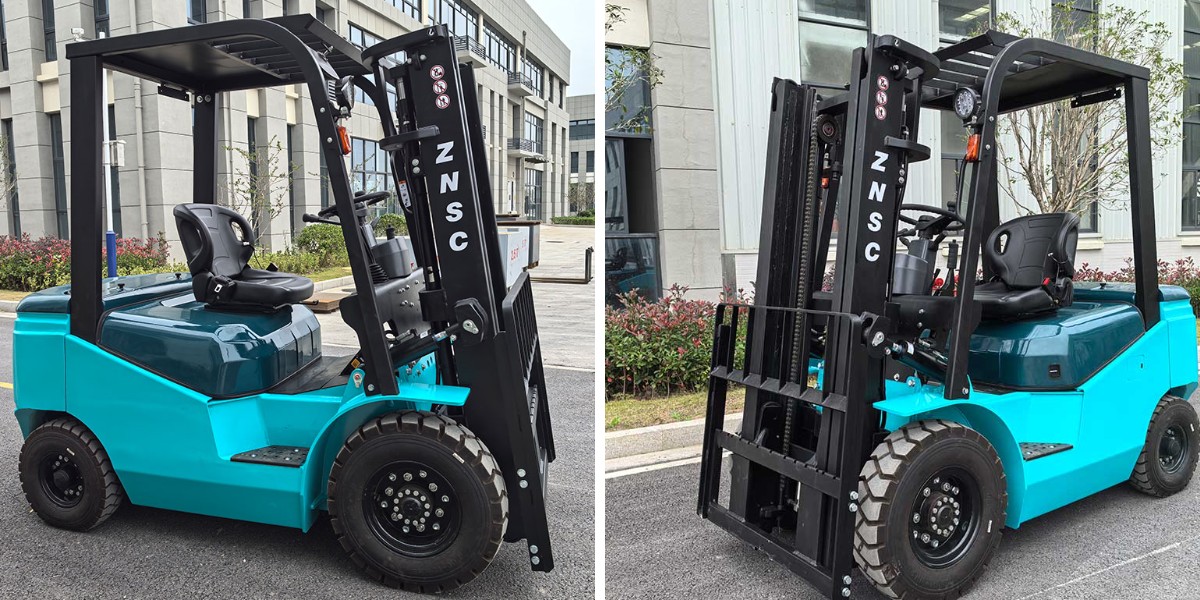

4 Ton Forklift Truck Electric
Environmental protection: Zero tail gas emissions, no harmful gases (CO, NOx, PM, etc.) and carbon dioxide emissions, it is a clean energy, especially suitable for indoor, confined spaces and places with high air quality requirements.
Low noise: The motor running sound is much lower than that of the internal combustion engine, which significantly reduces noise pollution, improves the working environment, reduces interference to operators and surrounding personnel, and is also suitable for noise-sensitive areas
Low maintenance cost: The structure is relatively simple (no engine, gearbox, fuel system, etc.), there are fewer parts to maintain, the maintenance cycle is long, and the maintenance cost is usually lower.
Product Description
An electric forklift is a material handling device that uses batteries (mainly lead-acid batteries or lithium batteries) as a power source and is driven by an electric motor to perform operations such as driving, lifting, lowering, and turning.
Core features: zero emissions, low noise, and relatively low operating costs. This makes it an ideal choice for indoor operations, high environmental requirements (such as the food, pharmaceutical, and electronics industries), and scenarios that require long-term continuous operations.

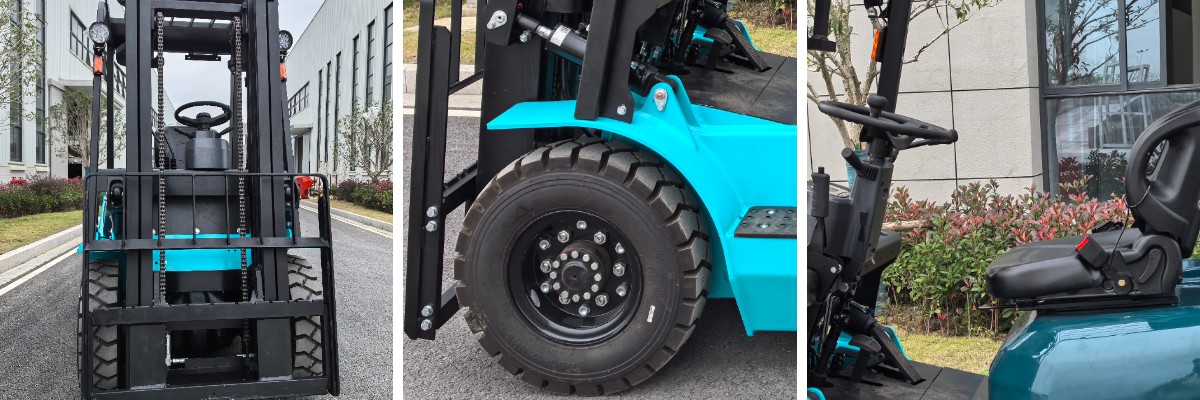

Features
Thickened and reinforced gantry：The main body of the gantry is made of high-quality thickened steel, which has an extremely strong structure and is durable. The composite plate chain is equipped with a double chain load-bearing system to ensure safe and reliable operation.
Portable workbench：The portable workbench is equipped with a handbrake and footbrake dual emergency stop device, which ensures safe operation.
Intelligent power management: Clear power display and low power automatic alarm system allow you to control the battery status at any time and effectively prevent battery over-discharge damage.
RUBBER TYRE：Improved hurdle-crossing ability and shock absorbing effect, fast travelling speed and high working efficiency
Technical Parameters
| Rated lifting capacity | 4000 |
| Load center distance | 500 |
| Maximum lifting height | 3000 |
| Free lifting height | 145 |
| Front mast inclination angle | 6° |
| Rear mast inclination angle | 10° |
| Maximum lifting speed without load | 400 |
| Maximum lifting speed with full load | 300 |
| Maximum travel speed without load | 14 |
| Maximum travel speed with full load | 12 |
| Maximum climbing grade (empty/full load) | 20/15 |
| Minimum turning radius | 2550 |
| Weight (including battery) | 5200 |
| Wheelbase | 1760 |
| Front overhang | 480 |
| Rear overhang | 600 |
| Without forks | 2840 |
| Outside of front wheels | 1220 |
| Height of mast without lifting frame | 2060 |
| Height of overhead guardrail | 2170 |
Main application scenarios
Indoor warehouses and logistics centers: The main application places for warehouse forklifts.
Manufacturing workshops: production line material distribution, semi-finished product/finished product transfer.
Cold chain logistics (cold storage): Electric forklifts (especially lithium batteries) have relatively stable performance in low temperature environments (but require special design) and no exhaust pollution.
