3 Ton 4 Wheel Drive Forklift
Compact body: width ≤ 1.5 meters, 80% of the standard forklift, flexible in narrow lanes, forests, and corners of construction sites.
Minimum turning radius: 3-4 meters (5-6 meters for ordinary forklifts), turn on the spot, reducing the number of advances and retreats.
Multi-directional vision optimization: hollow gantry + low waistline cab, no blind spots for field operations, 40% increased safety.
Product Description
The small off road forklift is designed for efficient operations in complex terrains. It integrates compact design, powerful off-road performance and user-friendly operation, and can easily cope with the cargo loading and unloading, stacking and short-distance transportation needs in construction sites, agricultural and forestry warehousing, field logistics and other scenarios.
Details

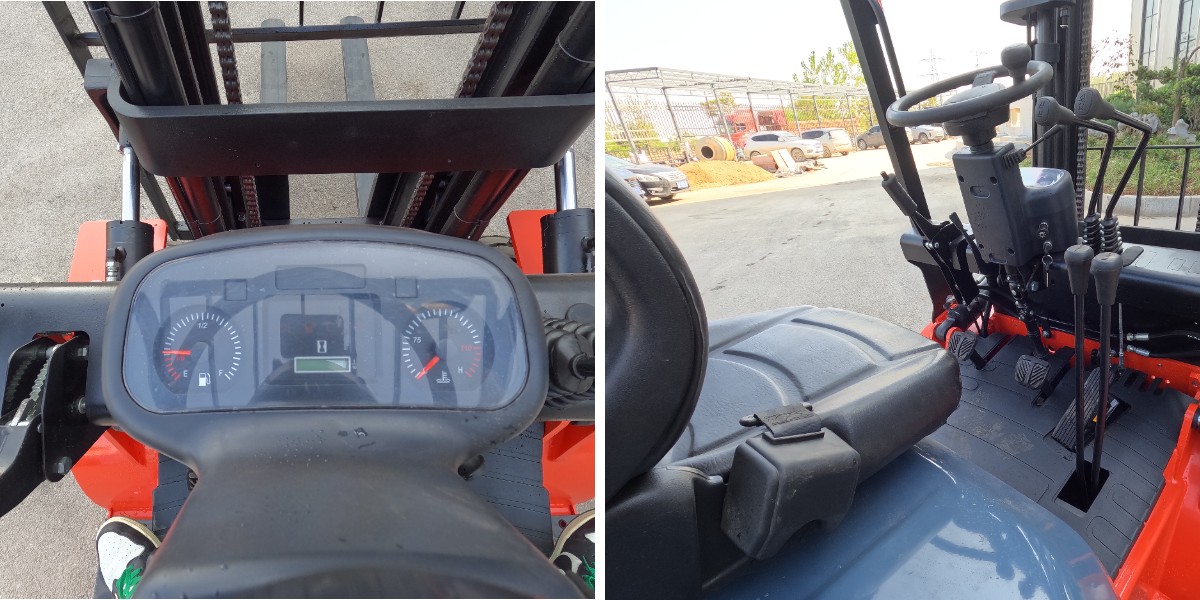

Operation:All functions is controlled by joysticks，Forkllift attachmenta are optional
New LCD display screen：Equipped with a newly developed high-stability LCD instrument, it integrates the display of key data such as vehicle operating status and electronic engine failure, providing operators with real-time visual monitoring and greatly improving maintenance efficiency.
Technical Parameters
| Rated load | 3000 |
| Unloading height | 3000 optional 4500 |
| Machine weight | 4500-5200 |
| Maximum climbing ability | ≤25° |
| Drive mode | Four-wheel drive |
| Front tire (solid tire) | 880/270-20/8.50 |
| Rear tire (solid tire) | 820/180-20/6.50 |
| Wheelbase | 1580 |
| round clearance of the front section of the mast | 28 |
| Ground clearance at the center of the wheelbase | 28 |
| Maximum driving speed (km/s) | 23 |
| Wheelbase | 1600 |
| Minimum turning radius | 3500 |
| Engine model | 490/495 |
| Engine power | 36.8-55kw |
| Dimensions | 3350*1700*2300 |
